APBA3010 Series

Catalog

LED GREEN/ORANGE CLEAR 2SMD R/A

Part	Voltage - Forward (Vf) (Typ)	Lens Style	Wavelength - Peak	Current - Test	Wavelength - Dominant	Mounting Type	Millicandela Rating	Viewing Angle	Lens Transparency	Configuration	Height (Max) [z]	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Lens Size [y]	Lens Size [x]	Package / Case	Lens Color	Color	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Current - Test	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak	Millicandela Rating [custom]

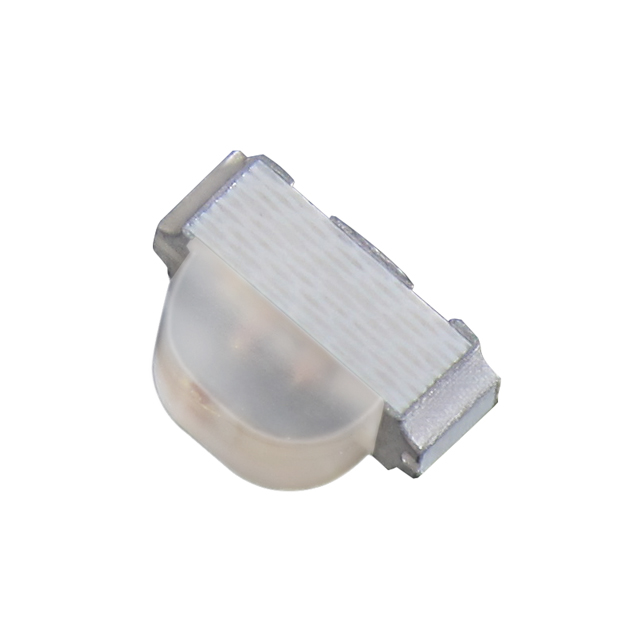

Kingbright APBA3010SEKCGKC-GX	2.1 V 2.1 V	Rectangle with Domed Top	574 nm 610 nm	20mA Green 20mA Orange	570 nm 601 nm	Right Angle Surface Mount	70 mcd 320 mcd	140 °	Clear	Common Anode	1.15 mm	2-SMD	3 mm	2 mm	1 mm	2 mm	2-SMD No Lead	Colorless	Green Orange
Kingbright APBA3010ESGC-GX	2 V 2.2 V	Rectangle with Domed Top	565 nm 627 nm		568 nm 617 nm	Right Angle Surface Mount		140 °	Clear	Common Anode	1 mm	Chip LED	3 mm	2 mm	1 mm	2 mm	3-SMD No Lead	Colorless	Green Red	8 mcd	15 mcd	20 mA	20 mA
Kingbright APBA3010SURKCGKC-GX	1.95 V 2.1 V	Rectangle with Domed Top	574 nm 645 nm			Right Angle Surface Mount	70 mcd 80 mcd	140 °	Clear	Common Anode	1 mm	Chip LED	3 mm	2 mm	1 mm	2 mm	3-SMD No Lead	Colorless	Green Red			20 mA	20 mA	570nm Green 630nm Red
Kingbright APBA3010SYKCGKC-GX		Rectangle with Domed Top			570 nm 590 nm	Right Angle Surface Mount	70 mcd 120 mcd	140 °	Clear	Common Anode	1 mm	Chip LED	3 mm	2 mm	1 mm	2 mm	3-SMD No Lead	Colorless	Green Yellow						20 mA 20 mA	2.1 V	2 V	574nm Green 590nm Yellow
Kingbright APBA3010EYC-GX	2 V 2.1 V	Rectangle with Domed Top	590 nm 627 nm			Right Angle Surface Mount	8 mcd 8 mcd	140 °	Clear	Common Anode	1 mm	Chip LED	3 mm	2 mm	1 mm	2 mm	3-SMD No Lead	Colorless	Red Yellow					588nm Yellow 617nm Red	20 mA 20 mA
Kingbright APBA3010YSGC-GX	2.1 V 2.2 V	Rectangle with Domed Top				Right Angle Surface Mount		140 °	Clear	Common Anode	1 mm	Chip LED	3 mm	2 mm	1 mm	2 mm	3-SMD No Lead	Colorless	Green Yellow		15 mcd			568nm Green 588nm Yellow	20 mA 20 mA			565nm Green 590nm Yellow	8 mcd
