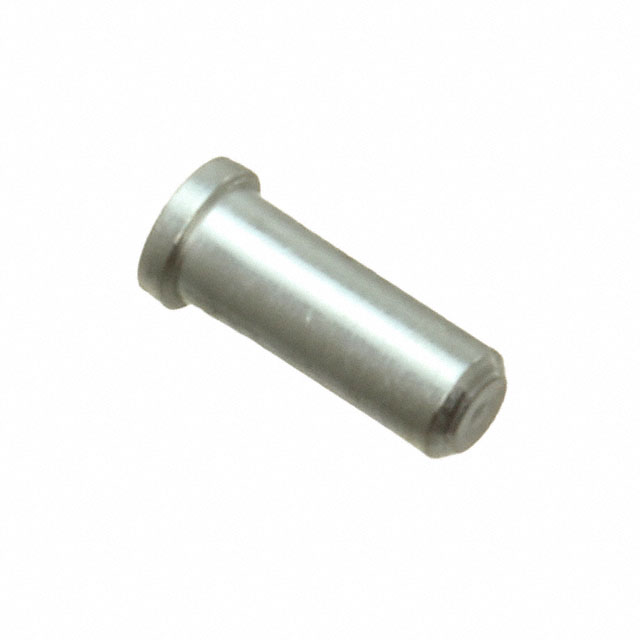

0327-0 Series

Catalog

CONN PIN RCPT

Part	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Contact Material	Contact Finish	Termination
Mill-Max Manufacturing Corp. 0327-0-15-80-34-80-10-0	1.17 mm	0.56 mm 0.81 mm	0.046 "	0.022 " 0.032 "	-55 C	125 °C	1.63 mm	0.064 in	4.57 mm	0.18 in	2.31 mm	0.091 "	5.23 mm	0.206 in	200 Áin	5.08 Ám	0.075 "	1.91 mm	No Tail	Beryllium Copper	Tin	Solder
Mill-Max Manufacturing Corp. 0327-0-15-01-34-01-10-0	1.17 mm	0.56 mm 0.81 mm	0.046 "	0.022 " 0.032 "	-55 C	125 °C	1.63 mm	0.064 in	4.57 mm	0.18 in	2.31 mm	0.091 "	5.23 mm	0.206 in	200 Áin	5.08 Ám	0.075 "	1.91 mm	No Tail	Beryllium Copper	Tin-Lead	Solder

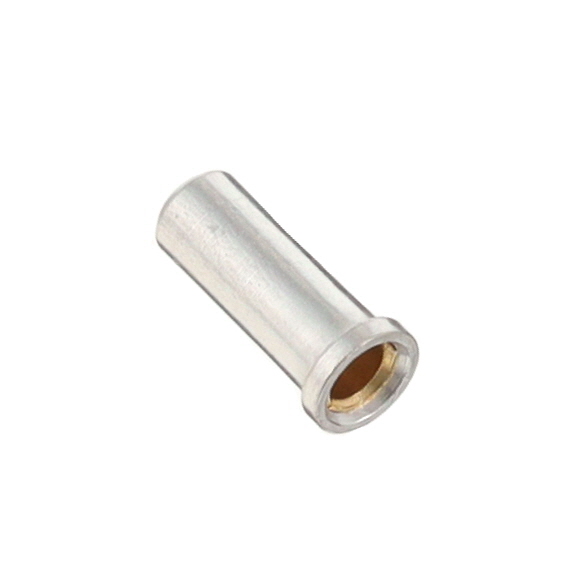

Mill-Max Manufacturing Corp. 0327-0-15-80-34-14-10-0	1.17 mm	0.56 mm 0.81 mm	0.046 "	0.022 " 0.032 "	-55 C	125 °C	1.63 mm	0.064 in	4.57 mm	0.18 in	2.31 mm	0.091 "	5.23 mm	0.206 in	10 Áin	0.25 Ám	0.075 "	1.91 mm	No Tail	Beryllium Copper	Gold	Solder

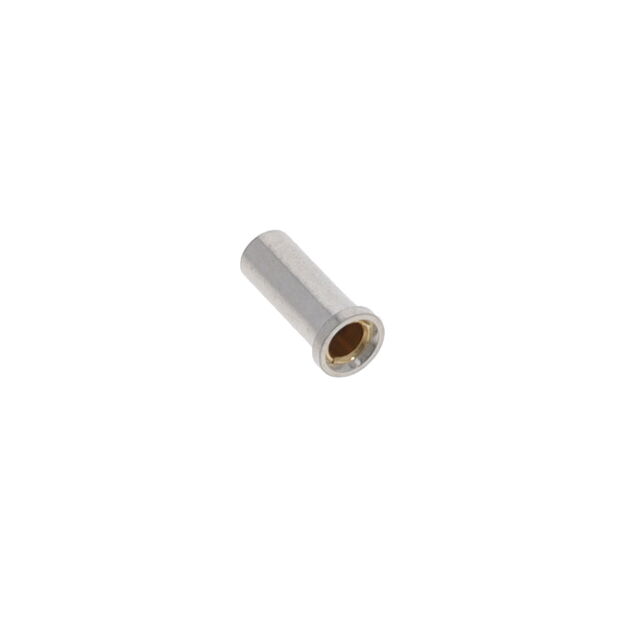

Mill-Max Manufacturing Corp. 0327-0-15-01-34-14-10-0	1.17 mm	0.56 mm 0.81 mm	0.046 "	0.022 " 0.032 "	-55 C	125 °C	1.63 mm	0.064 in	4.57 mm	0.18 in	2.31 mm	0.091 "	5.23 mm	0.206 in	10 Áin	0.25 Ám	0.075 "	1.91 mm	No Tail	Beryllium Copper	Gold	Solder
