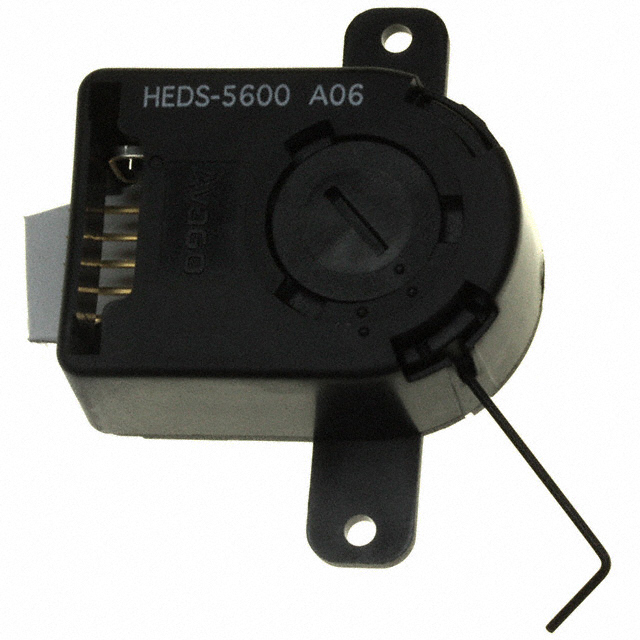

HEDS-5600 Series
Manufacturer: Broadcom Limited
Beta
⌘K
ROTARY ENCODER, OPTICAL, INCREMENTAL, 500 PPR, 0 DETENTS, VERTICAL, WITHOUT PUSH SWITCH
| Part | Actuator Type | Output Type | Encoder Type | Orientation | Mounting Type | Pulses per Revolution | Built in Switch | Detent | Termination Style |
|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 1/4" Open Center | Quadrature (Incremental) | Optical | Vertical | Chassis Mount Motors | 500 | Terminal Pins | ||
 Broadcom Limited | 8mm Open Center | Quadrature (Incremental) | Optical | Vertical | Chassis Mount Motors | 360 | Terminal Pins | ||
 Broadcom Limited | 1/4" Open Center | Quadrature (Incremental) | Optical | Vertical | Chassis Mount Motors | 200 | Terminal Pins | ||
Broadcom Limited | 5mm Open Center | Quadrature (Incremental) | Optical | Vertical | Chassis Mount Motors | 500 | Terminal Pins | ||
 Broadcom Limited | 1/4" Open Center | Quadrature (Incremental) | Optical | Vertical | Chassis Mount Motors | 100 | Terminal Pins |
