74002 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

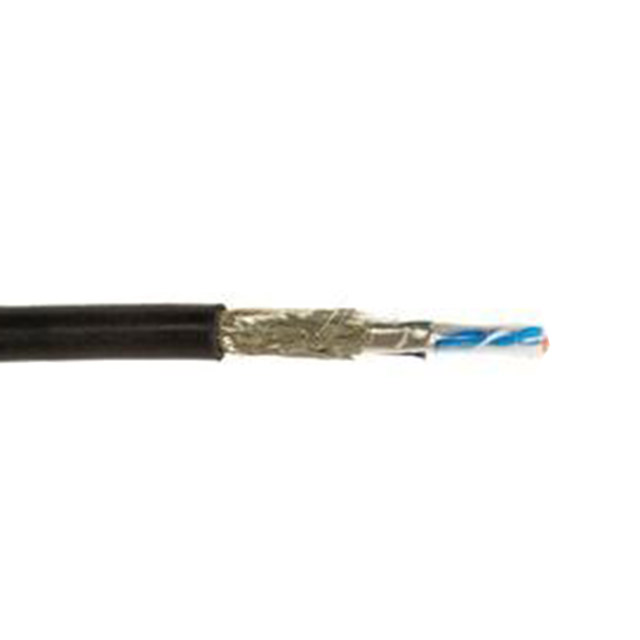

CABLE CAT5E 4COND 26AWG BLK 50'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Number of Conductors | Usage | Shield Type | Length | Length | Conductor Material | Voltage | Cable Type | Wire Gauge | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [x] | Conductor Strand [x] | Features | Length [x] | Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 80 % 100 % | Thermoplastic Polyurethane (TPU) | 4 | Industrial Network | Braid Foil | 3.05 m 15.24 m 152.4 m | 10 ft 50 ft 500 ft | Copper Bare | 300 VDC | Multi-Pair Cat5e | 26 AWG | Polypropylene (PP) | 0.031 in | 0.787 mm | 34 AWG | 7 | Oil Resistant Rip Cord | 100 ft | 30.5 m | 80 °C | -40 C | UL Style 20549 | Black | 0.236 " | 5.99 mm |
