MDS-400 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC CONVERTER 19V 300W
| Part | Standard Number | Type | Current - Output 1 | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Isolation | Voltage - Output 1 | Mounting Type | Applications | Power (Watts) | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Features | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

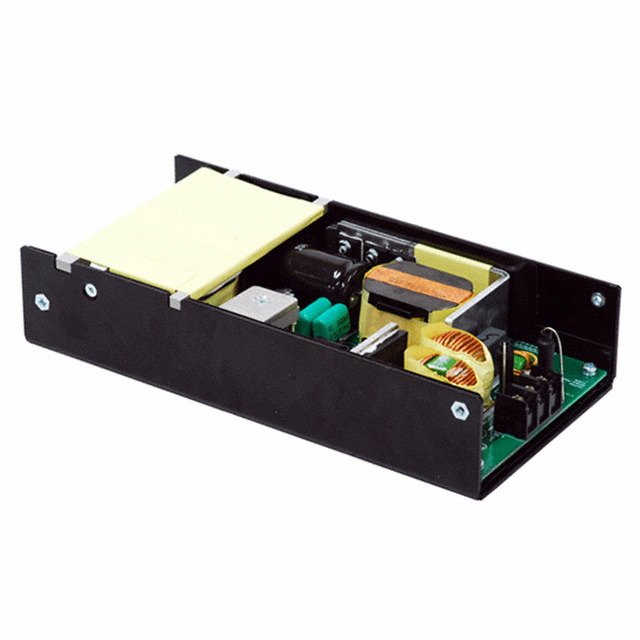

 Delta Electronics | 50581 55011 55032 60601-1 60950-1 | Open Frame | 15.8 A | CB Scheme CE EN UL | 70 °C | -10 °C | 1 | 4000 V | 19 V | Chassis Mount | ITE (Commercial) Medical | 300 W | 400 W | 3.82 in | 198 mm | 1.63 in | 41.5 mm | 97 mm | 7.8 in | PFC Remote Sense Standby Output Universal Input | 264 VAC | 90 VAC | 91 % |

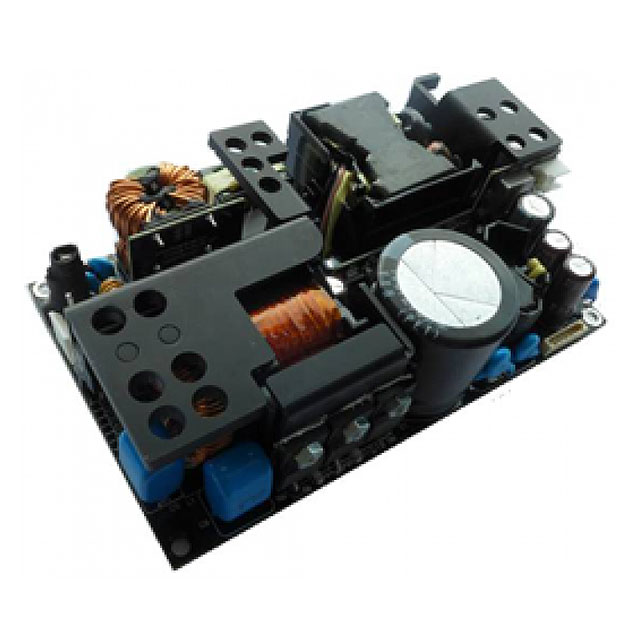

 Delta Electronics | 50581 55011 55032 60601-1 60950-1 | Open Frame | 8.33 A | CB Scheme CE EN SIQ TUV UL | 70 °C | -10 °C | 1 | 4000 V | 24 V | Chassis Mount | ITE (Commercial) Medical | 200 W | 3 " | 127 mm | 1.4 " | 35.6 mm | 76.2 mm | 5 " | PFC Remote On/Off Remote Sense Standby Output Universal Input | 264 VAC | 90 VAC | 93 % |
