LZ4-60 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

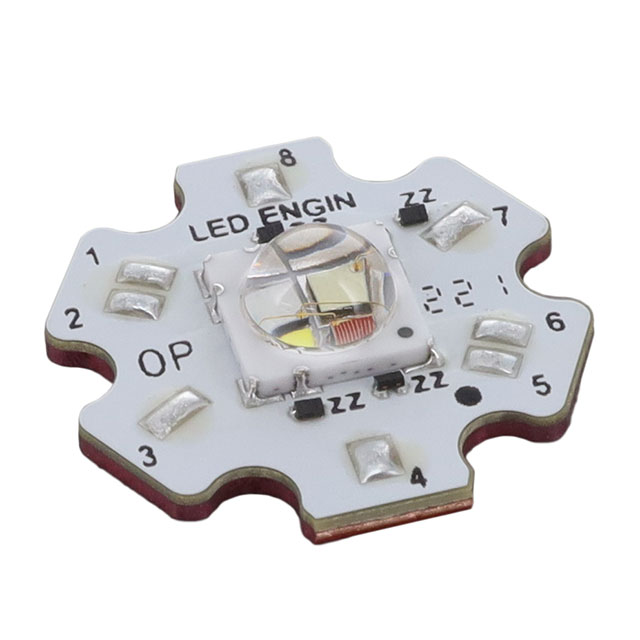

LED MOD LZ4 RGBW STARBRD 6173K
| Part | CRI (Color Rendering Index) | Type | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test | Wavelength | Viewing Angle | CCT (K) | Height [z] | Lens Type | Current - Max [custom] | Current - Max [custom] | Current - Max [custom] | Current - Max [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Voltage - Forward (Vf) (Typ) | Size / Dimension [diameter] | Color | Temperature - Test | Configuration | Light Emitting Surface (LES) [y] | Light Emitting Surface (LES) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 75 | LED Module | 63 lm/W | 13 lm/W | 66 lm/W | 85 lm/W | 457 nm 525 nm 624 nm | 95 ° | 6173 K | 5.2 mm | Domed | 1 A | 1 A | 1 A | 1 A | 30 lm | 160 lm | 115 lm | 190 lm | 2.5 V 3.2 V 3.2 V 3.6 V | 19.9 mm | Blue Green Red White | 25 °C | Starboard | 7 mm | 7 mm |
