HM2R65 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

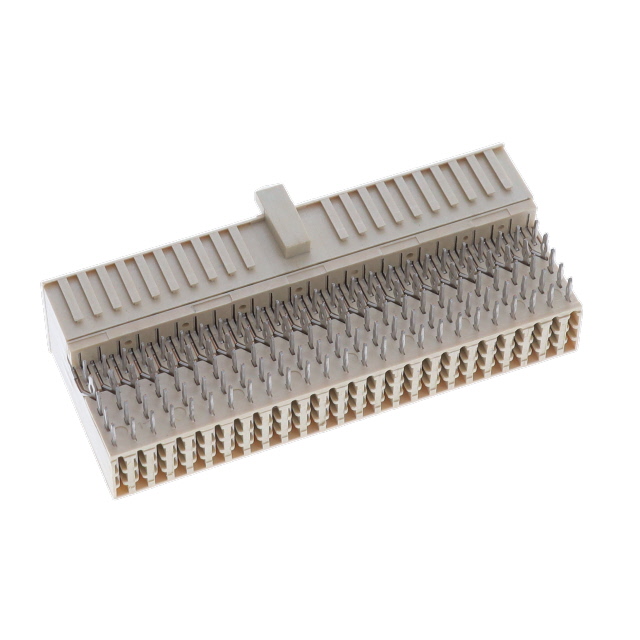

CONN RECEPT 150POS 2MM PRESS-FIT
| Part | Current Rating (Amps) | Features | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions Loaded | Contact Finish | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Connector Style | Mounting Type | Number of Rows | Connector Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 1.5 A | Upper Shield | 750 Vrms | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | 1 5 | All | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | 25 125 | AB 25 | Board Edge Right Angle Through Hole | ||
 Amphenol ICC (FCI) | 1.5 A | Board Guide | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | All | Gold | Receptacle Female Sockets | 125 | AB 25 | Board Edge Right Angle Through Hole | 5 + 2 | Backplane | ||||
Amphenol ICC (FCI) | 1.5 A | Upper Shield | 500 V | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | 5 | All | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | 125 | AB 25 | Board Edge Right Angle Through Hole | ||
Amphenol ICC (FCI) | 1.5 A | Upper Shield | 500 V | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | 1 5 | All | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | 25 125 | AB 25 | Board Edge Right Angle Through Hole | ||
Amphenol ICC (FCI) | 1.5 A | 500 V | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | 5 | All | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | 125 | AB 25 | Board Edge Right Angle Through Hole | |||
Amphenol ICC (FCI) | 1.5 A | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | Gold | Header Male Pins | Through Hole | Backplane | |||||||||
 Amphenol ICC (FCI) | 1.5 A | Upper and Lower Shield | 750 Vrms | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | 1 5 | All | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | 25 125 | AB 25 | Board Edge Right Angle Through Hole | ||
 Amphenol ICC (FCI) | 1.5 A | 750 Vrms | -55 C | 125 °C | Press-Fit | 0.079 in | 2 mm | 5 | All | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | 125 | AB 25 | Board Edge Right Angle Through Hole |
