CNX718 Series

Manufacturer: Visual Communications Company - VCC

Catalog

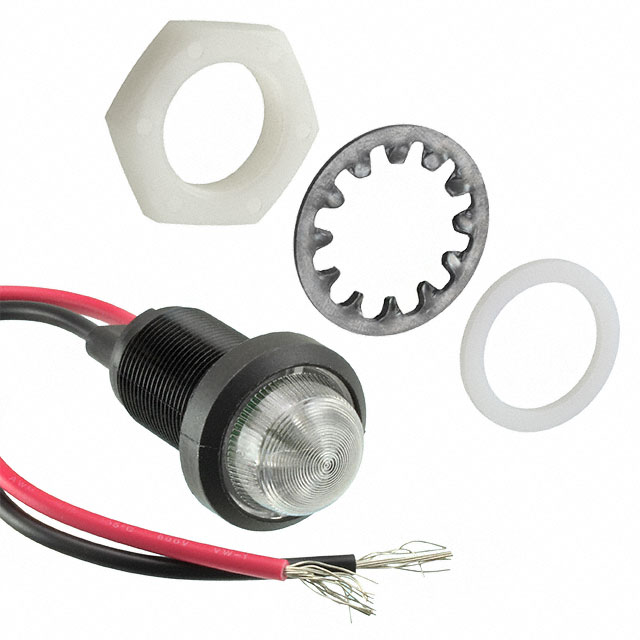

LED 18MM WHITE 5V WIRE PNL MNT

Part	Lens Transparency	Lens Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating	Voltage	Ratings	Panel Cutout Shape	Lamp Color	Lens Style	Type	Lens Size [diameter]	Termination Style
Visual Communications Company - VCC CNX718N90005W	Clear Fresnel	Clear White	0.69 in	17.53 mm	2500 mcd	5 V	DC	Round	White	Round with Domed Top	LED	18.5 mm
Visual Communications Company - VCC CNX718N50028W	Fresnel	Clear	0.69 in	17.53 mm	2400 mcd	28 V	DC	Round	Green	Round with Domed Top	LED	18.5 mm
Visual Communications Company - VCC CNX718N40012T	Clear Fresnel	Amber Clear	0.69 in	17.53 mm	2800 mcd	12 V	DC	Round	Amber	Round with Domed Top	LED	18.5 mm	Quick Connect
Visual Communications Company - VCC CNX718N900120W	Clear Fresnel	Clear White	0.69 in	17.53 mm	2500 mcd	120 V	AC	Round	White	Round with Domed Top	LED	18.5 mm
Visual Communications Company - VCC CNX718N90005T	Clear Fresnel	Clear White	0.69 in	17.53 mm	2500 mcd	5 V	DC	Round	White	Round with Domed Top	LED	18.5 mm	Quick Connect
Visual Communications Company - VCC CNX718N40028T	Clear Fresnel	Amber Clear	0.69 in	17.53 mm	2800 mcd	28 V	DC	Round	Amber	Round with Domed Top	LED	18.5 mm	Quick Connect
Visual Communications Company - VCC CNX718N500120W	Clear Fresnel	Clear Green	0.69 in	17.53 mm	2400 mcd	120 V	AC	Round	Green	Round with Domed Top	LED	18.5 mm
Visual Communications Company - VCC CNX718N50005T	Clear Fresnel	Clear Green	0.69 in	17.53 mm	2400 mcd	5 V	DC	Round	Green	Round with Domed Top	LED	18.5 mm	Quick Connect
Visual Communications Company - VCC CNX718N40005W	Clear Fresnel	Amber Clear	0.69 in	17.53 mm	2800 mcd	5 V	DC	Round	Amber	Round with Domed Top	LED	18.5 mm
Visual Communications Company - VCC CNX718N40005T	Clear Fresnel	Amber Clear	0.69 in	17.53 mm	2800 mcd	5 V	DC	Round	Amber	Round with Domed Top	LED	18.5 mm	Quick Connect
