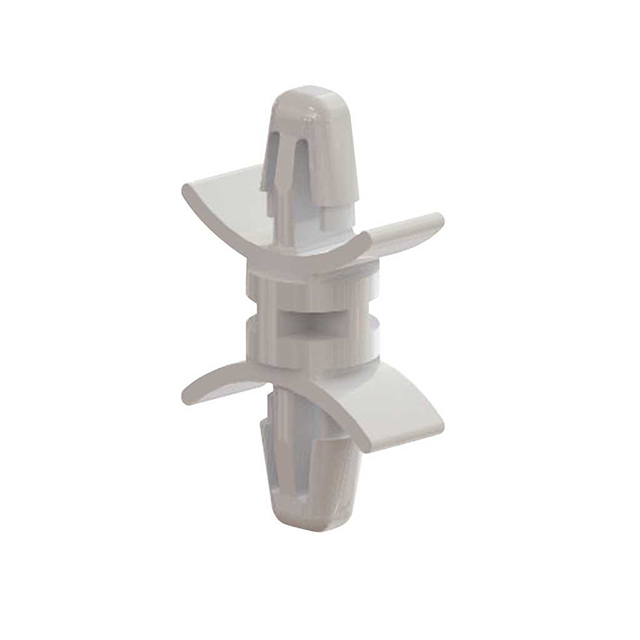

DLCBS2 Series

Catalog

BRD SPT SNAP LOCK NYLON 7/8"

Part	Length - Overall	Length - Overall	Between Board Height	Between Board Height	Between Board Height	Mounting Type	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Material	Holding Type	Features	Length - Overall [x]	Length - Overall [x]
Essentra Components DLCBS2-14-19	1.535 "	39 mm	22.23 mm	0.875 in	0.875 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged
Essentra Components DLCBS2-10-19			15.88 mm	5 8	0.625 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	32.7 mm	1.287 in
Essentra Components DLCBS2-6-19			9.53 mm	0.375 "	0.375 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	26.3 mm	1.035 in
Essentra Components DLCBS2-9-19			14.3 mm	9 "	0.563 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	31.1 mm	1.224 in
Essentra Components DLCBS2-14-01	1.535 "	39 mm	22.23 mm	0.875 in	0.875 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged
Essentra Components DLCBS2-8-19			12.7 mm	0.5 in	0.5 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	29.5 mm	1.161 in
Essentra Components DLCBS2-4-01			0.25 in		6.35 mm	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	23.2 mm	0.913 "
Essentra Components DLCBS2-8-01			12.7 mm	0.5 in	0.5 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	29.5 mm	1.161 in
Essentra Components DLCBS2-9-01			14.3 mm	9 "	0.563 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	31.1 mm	1.224 in

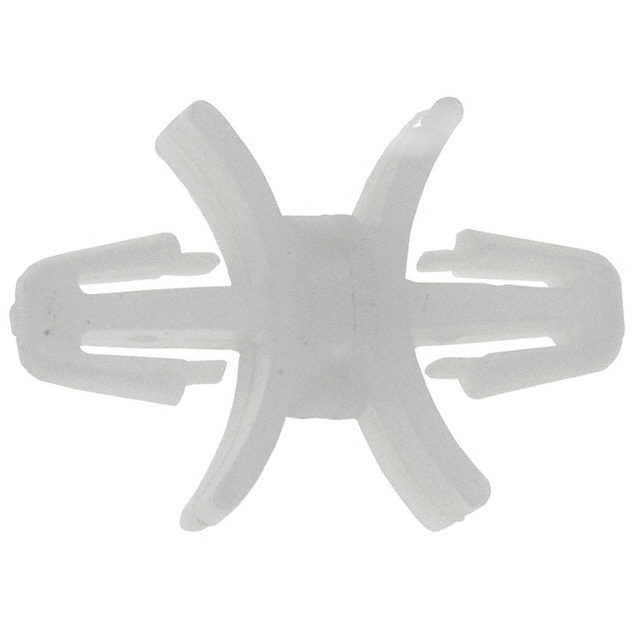

Essentra Components DLCBS2-3-01			0.1875 in		0.188 in	Snap Lock	0.79 mm	0.031 in	0.078 "	1.98 mm	0.1875 in	0.187 in	4.75 mm	0.187 in	4.75 mm	3/16	0.031 in	0.79 mm	0.078 in	1.98 mm	Nylon	Snap Lock	Winged	21.6 mm	0.85 in
