1825290 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

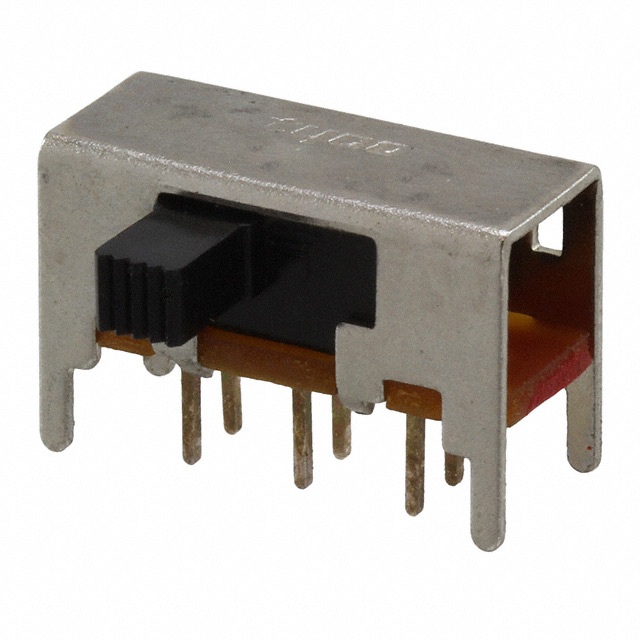

SWITCH SLIDE DPDT 300MA 125V
| Part | Features | Actuator Type | Voltage Rating - AC | Electrical Life | Circuit | Switch Travel | Actuator Length [x] | Contact Finish | Contact Timing | Switch Function | Mounting Type | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Actuator Material | Current Rating (Amps) | Contact Material | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Epoxy Sealed Terminals | Standard | 125 V | 15000 Cycles | DPDT | 4 mm | 4.5 mm | Silver | Shorting | On-On | Through Hole Right Angle | 15000 Cycles | 85 °C | -20 C | PC Pin | Polyoxymethylene (Acetal) (POM) | 300 mA | Copper Alloy | 600 gf |
