GWPLLRA1.C Series

Catalog

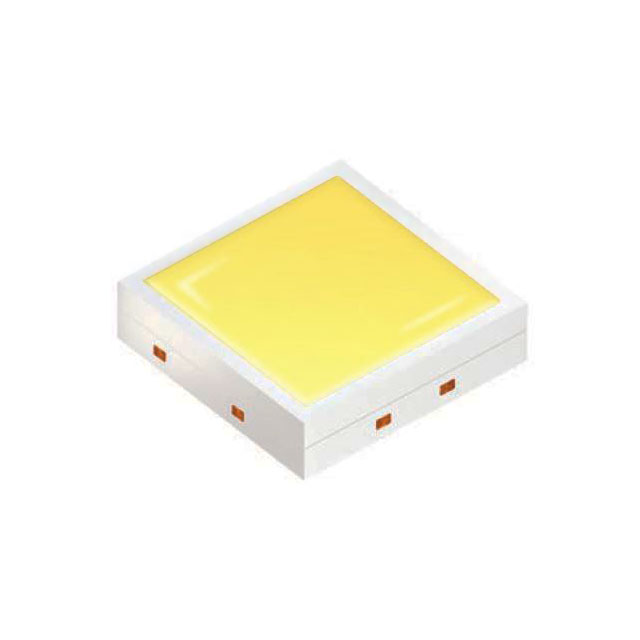

LED OSCONIQ SMD

Part	Thermal Resistance of Package	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Viewing Angle	Color	Package / Case	CRI (Color Rendering Index)	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test
ams-OSRAM USA INC. GW PLLRA1.CM-M5MF-XX56-1-700-R18	3.5 °C/W	3500 K	2.4 mm	2.4 mm	0.094 in	0.094 "	127 lm/W	2.8 V	SMD	120 °	Warm White	2-SMD No Lead Exposed Pad	90	Surface Mount	0.7 mm	0.028 "	1.5 A	220 lm	280 lm
ams-OSRAM USA INC. GW PLLRA1.CM-M7N2-XX51-1-700-R18	3.5 °C/W	5000 K 6500 K	2.4 mm	2.4 mm	0.094 in	0.094 "	138 lm/W	2.8 V	SMD	120 °	Cool White	2-SMD No Lead Exposed Pad	90	Surface Mount	0.7 mm	0.028 "	1.5 A	240 lm	300 lm
ams-OSRAM USA INC. GW PLLRA1.CM-M7N2-XX52-1-700-R18	3.5 °C/W	5700 K	2.4 mm	2.4 mm	0.094 in	0.094 "	138 lm/W	2.8 V		120 °	Cool White	2-SMD No Lead Exposed Pad	90	Surface Mount	0.7 mm	0.028 "	1.5 A	240 lm	300 lm
ams-OSRAM USA INC. GW PLLRA1.CM-M4M9-XX57-1-700-R18	3.5 °C/W	3000 K	2.4 mm	2.4 mm	0.094 in	0.094 "	122 lm/W	2.8 V	SMD	120 °	Warm White	2-SMD No Lead Exposed Pad	90	Surface Mount	0.7 mm	0.028 "	1.5 A	210 lm	270 lm
ams-OSRAM USA INC. GW PLLRA1.CM-M6N1-XX55-1-700-R18	3.5 °C/W	4000 K	2.4 mm	2.4 mm	0.094 in	0.094 "	133 lm/W	2.8 V	SMD	120 °	Neutral White	2-SMD No Lead Exposed Pad	90	Surface Mount	0.7 mm	0.028 "	1.5 A			260 lm
