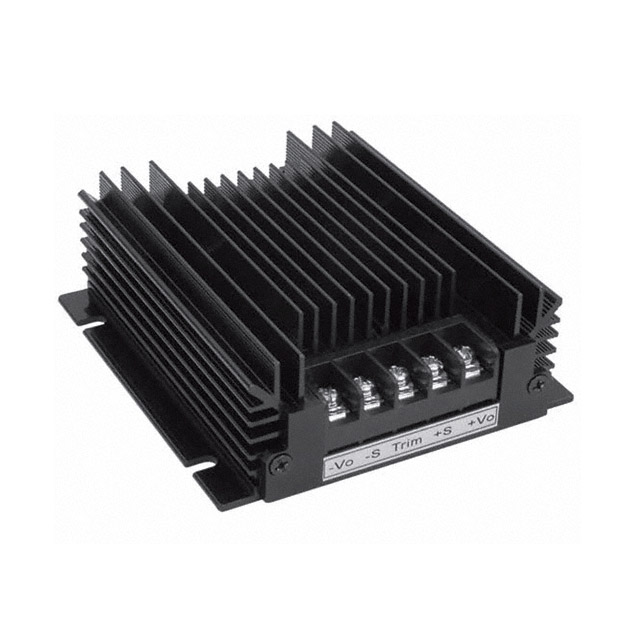

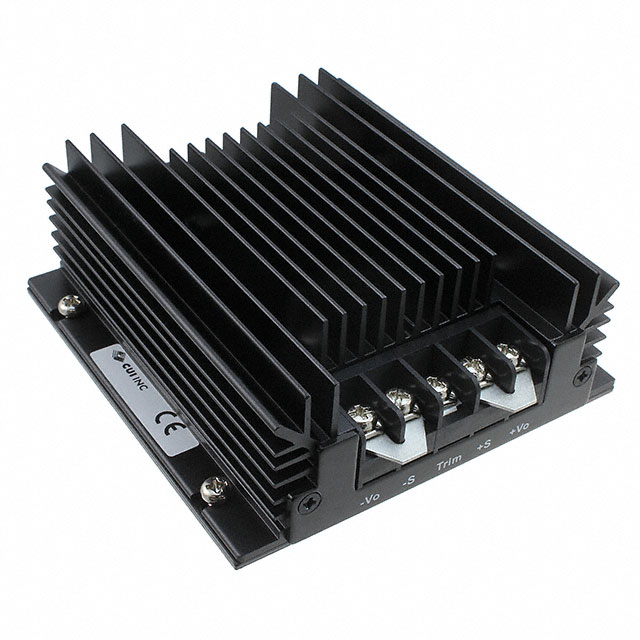

VHK200W Series

Manufacturer: CUI Inc.

Catalog

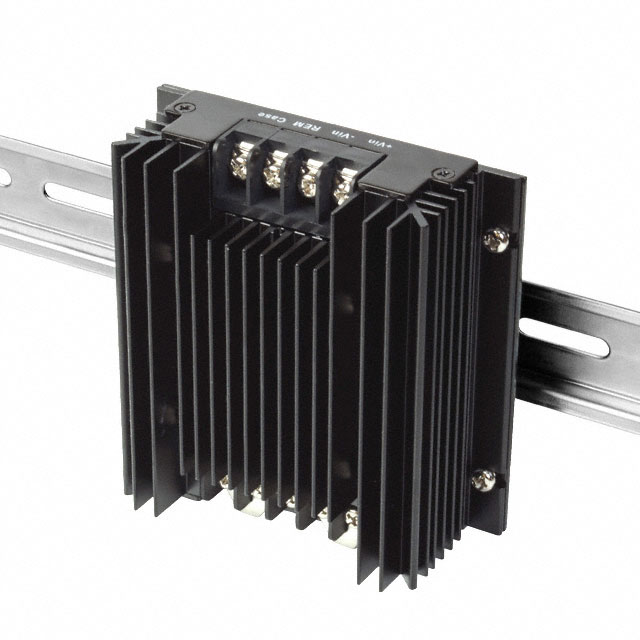

DC/DC DIN RAIL SUPPLY 24V 200W

Part	DC Voltage - Input (Min) [Min]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Efficiency	Approval Agency	Input Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max) [Max]	DC Voltage - Input (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Type
CUI Inc. VHK200W-Q24-S24-DIN	10 V	1	85 °C	-40 C	24 V	200 Watts	84 %	CE	DC	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	8.3 A	36 V
CUI Inc. VHK200W-Q48-S12-DIN	18 V	1	85 °C	-40 C	12 V	200 Watts	86 %	CE	DC	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	16.7 A	75 V
CUI Inc. VHK200W-Q48-S48-DIN	18 V	1	85 °C	-40 C	48 V	200 Watts	88 %	CE	DC	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	4.2 A	75 V
CUI Inc. VHK200W-Q24-S15-DIN	10 V	1	85 °C	-40 C	15 V	200 Watts	84 %	CE	DC	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	13.3 A	36 V
CUI Inc. VHK200W-Q24-S28		1	100 °C	-40 C	28 V	200 Watts	87 %			1.5 in	38.1 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	7.14 A		Chassis Mount	36 V	10 VDC	Enclosed
CUI Inc. VHK200W-Q24-S28-DIN	10 V	1	85 °C	-40 C	28 V	200 Watts	87 %	CE	DC	2.07 "	52.6 mm	107.4 mm	4.23 "	101.9 mm	4.01 in	7.14 A	36 V
CUI Inc. VHK200W-Q48-S15		1	100 °C	-40 C	15 V	200 Watts	86 %			1.5 in	38 mm	107.5 mm	4.23 "	101.8 mm	4.01 in	13.3 A		Chassis Mount	75 V	18 V	Enclosed
CUI Inc. VHK200W-Q24-S12		1	100 °C	-40 C	12 V	200 Watts	84 %			1.5 in	38 mm	107.5 mm	4.23 "	101.8 mm	4.01 in	16.7 A		Chassis Mount	36 V	10 VDC	Enclosed
CUI Inc. VHK200W-Q48-S12		1	100 °C	-40 C	12 V	200 Watts	86 %			1.5 in	38 mm	107.5 mm	4.23 "	101.8 mm	4.01 in	16.7 A		Chassis Mount	75 V	18 V	Enclosed
CUI Inc. VHK200W-Q24-S48		1	100 °C	-40 C	48 V	200 Watts	87 %			1.5 in	38 mm	107.5 mm	4.23 "	101.8 mm	4.01 in	4.2 A		Chassis Mount	36 V	10 VDC	Enclosed
