ATS-03H Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 35X35X35MM R-TAB T412

...

Part	Shape	Thermal Resistance @ Forced Air Flow	Package Cooled	Material	Material Finish	Length [x]	Length	Width [y]	Width [y]	Type	Fin Height [custom]	Fin Height [custom]	Attachment Method	Width [x]	Width [x]	Length [x]	Fin Height	Fin Height	Length	Fin Height [z]	Fin Height [z]

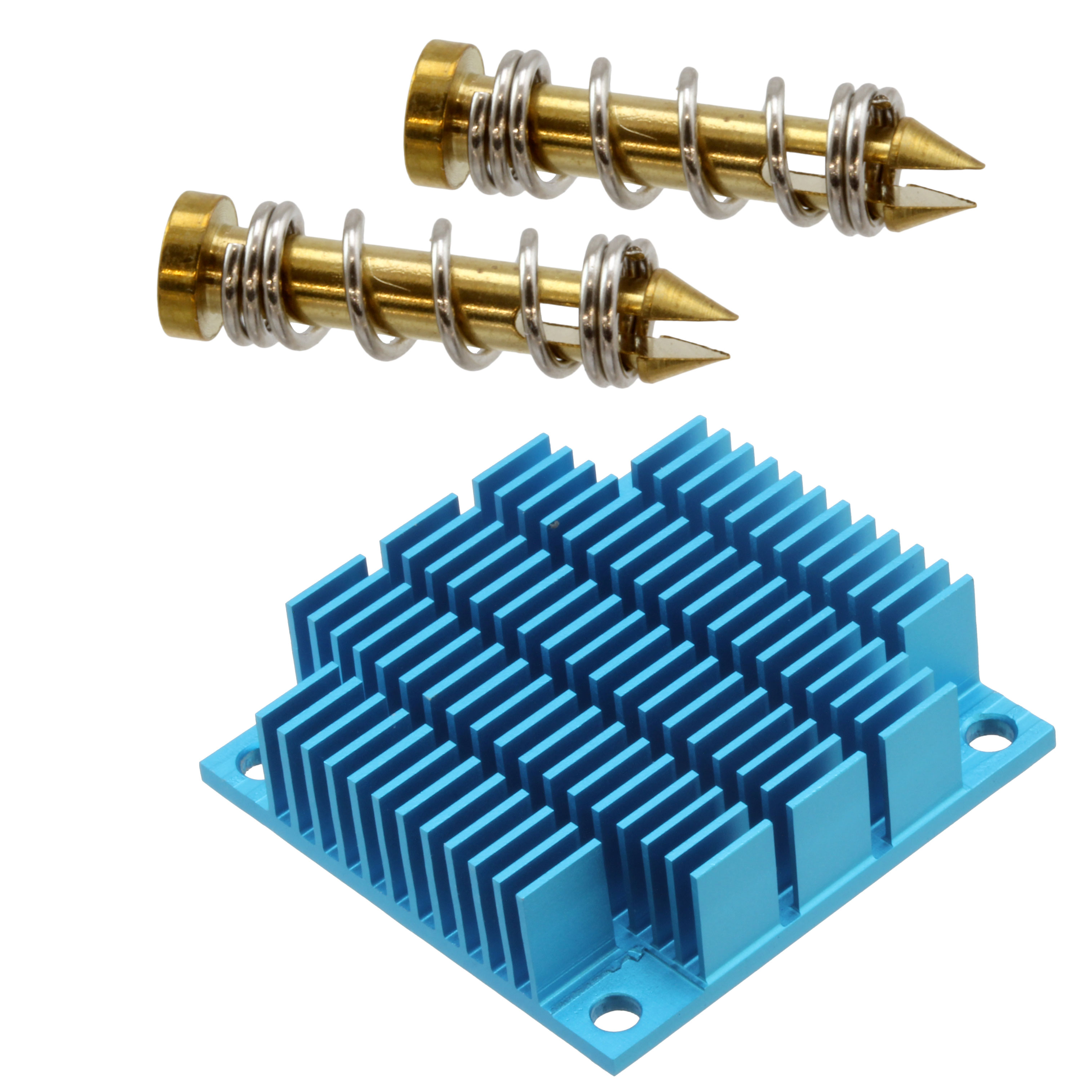

Advanced Thermal Solutions Inc. ATS-03H-180-C3-R0	Fins Square	3.46 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized	1.378 "	35 mm	1.378 "	35 mm	Top Mount	1.378 in	35 mm	Push Pin
Advanced Thermal Solutions Inc. ATS-03H-208-C1-R0	Fins Square	10.49 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized	2.756 in				Top Mount			Push Pin	70 mm	2.756 "	70 mm	0.236 "	6 mm
Advanced Thermal Solutions Inc. ATS-03H-116-C2-R0	Fins Square	4.14 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized			1.575 in	40 mm	Top Mount			Push Pin				0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-03H-144-C1-R0	Fins Square	5.48 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized		0.03 m			Top Mount			Push Pin	30 mm	1.181 in		0.984 in	25 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-03H-206-C2-R0	Fins Square	7.71 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized	2.362 in		2.362 in	60 mm	Top Mount	0.394 "	10 mm	Push Pin			60 mm
Advanced Thermal Solutions Inc. ATS-03H-66-C2-R0	Fins Square	5.77 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized			1.575 in	40 mm	Top Mount	1.378 in	35 mm	Push Pin
Advanced Thermal Solutions Inc. ATS-03H-171-C2-R0	Fins Square	7.33 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized		0.03 m			Top Mount			Push Pin	30 mm	1.181 in				1.181 in	20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-03H-185-C1-R0	Fins Square	3.32 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized			1.575 in	40 mm	Top Mount			Push Pin							30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-03H-76-C1-R0	Fins Square	11.5 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized	0.984 in	25 mm			Top Mount			Push Pin	25 mm	0.984 "		0.984 in	25 mm

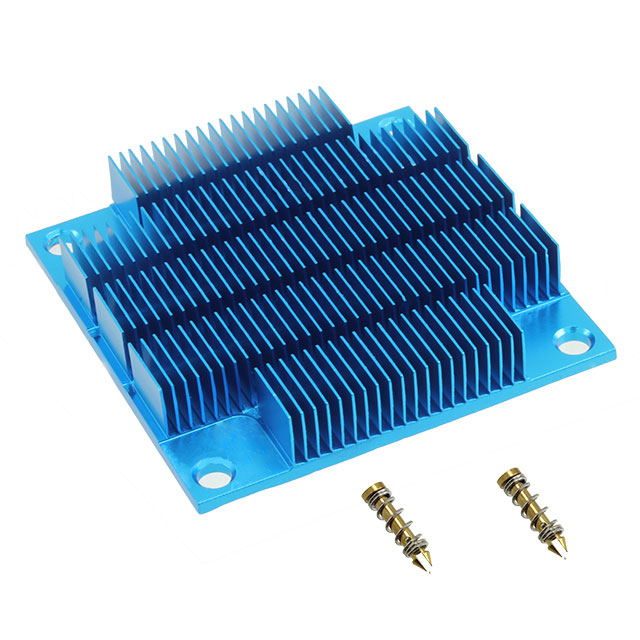

Advanced Thermal Solutions Inc. ATS-03H-107-C1-R1	Fins Square	27.91 °C/W	ASIC BGA CPU LGA	Aluminum	Blue Anodized	1.969 in				Top Mount			Push Pin	50 mm	1.969 in	50 mm	0.374 in	9.5 mm
