SA56-21 Series

Catalog

DISPLAY 7SEG 0.56" SGL RED 10DIP

Part	Common Pin	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Color	Current - Test	Voltage - Forward (Vf) (Typ)	Display Type	Wavelength - Peak	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Power Dissipation (Max) [Max]	Millicandela Rating
Kingbright SA56-21SRWA	Common Anode	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	Red	20 mA	1.85 V	7-Segment	660 nm	0.6 in 15.24 mm	10-DIP	0.56 in	14.22 mm	1	75 mw	34 mcd
Kingbright SA56-21EWA	Common Anode	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	Red	20 mA	2 V	7-Segment	627 nm	0.6 in 15.24 mm	10-DIP	0.56 in	14.22 mm	1	75 mw

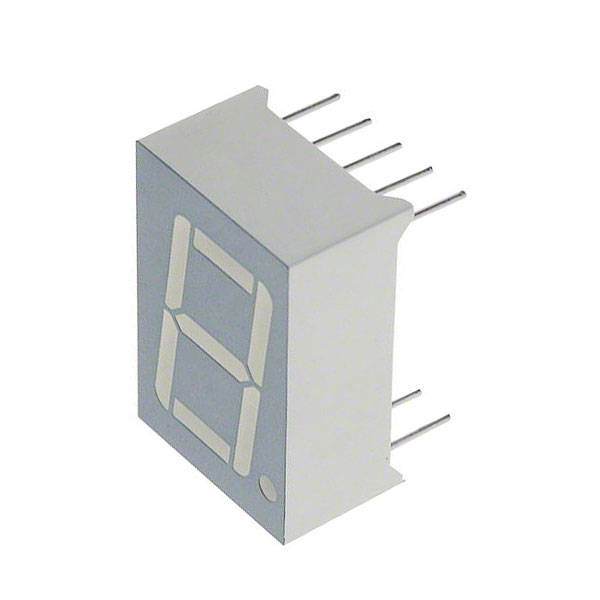

Kingbright SA56-21GWA	Common Anode	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	Green	20 mA	2.2 V	7-Segment	565 nm	0.6 in 15.24 mm	10-DIP	0.56 in	14.22 mm	1	62.5 mW	11 mcd
Kingbright SA56-21SYKWA	Common Anode	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	Yellow	20 mA	2 V	7-Segment	590 nm	0.6 in 15.24 mm	10-DIP	0.56 in	14.22 mm	1	75 mw	160 mcd
Kingbright SA56-21CGKWA	Common Anode	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	Green	20 mA	2.1 V	7-Segment		0.6 in 15.24 mm	10-DIP	0.56 in	14.22 mm	1	75 mw	35 mcd
Kingbright SA56-21YWA	Common Anode	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	Yellow	20 mA	2.1 V	7-Segment	590 nm	0.6 in 15.24 mm	10-DIP	0.56 in	14.22 mm	1	75 mw	6.5 mcd

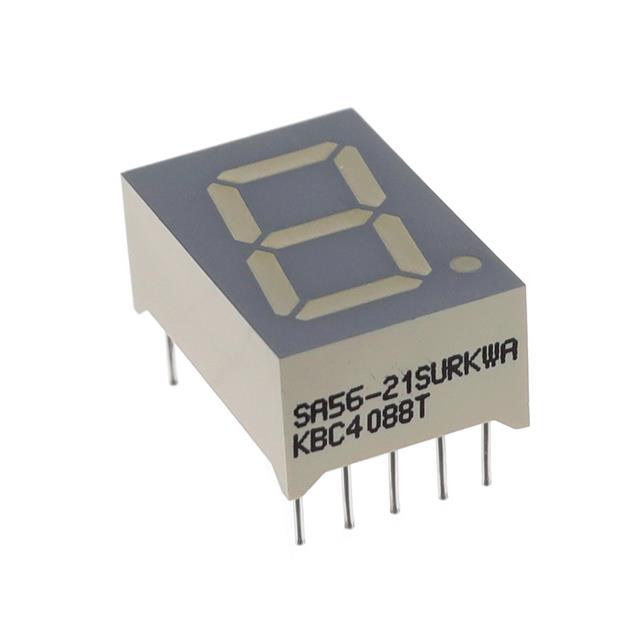

Kingbright SA56-21SURKWA	Common Anode	0.315 in	0.5 "	0.75 in	12.7 mm	19.05 mm	8 mm	Red	20 mA	1.95 V	7-Segment	645 nm	0.6 in 15.24 mm	10-DIP	0.56 in	14.22 mm	1	75 mw	97 mcd
