A3UL-TMW Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON SPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Actuator Type	Color - Actuator/Cap	Switch Function	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - DC	Type	Panel Cutout Dimensions [diameter]	Illumination Voltage (Nominal)	Circuit	Illumination Type, Color	Mounting Type	Termination Style	Ingress Protection
Omron Automation and Safety A3UL-TMW-3A1C-5M	200000 Cycles	1000000 Cycles	Button Flush Round	Clear	On-Mom	No Marking	55 °C	-20 ░C	100 mA	30 V	Illuminated Standard	25.2 mm	24 V	SPDT	LED White	Panel Mount Front	Connector	IP65

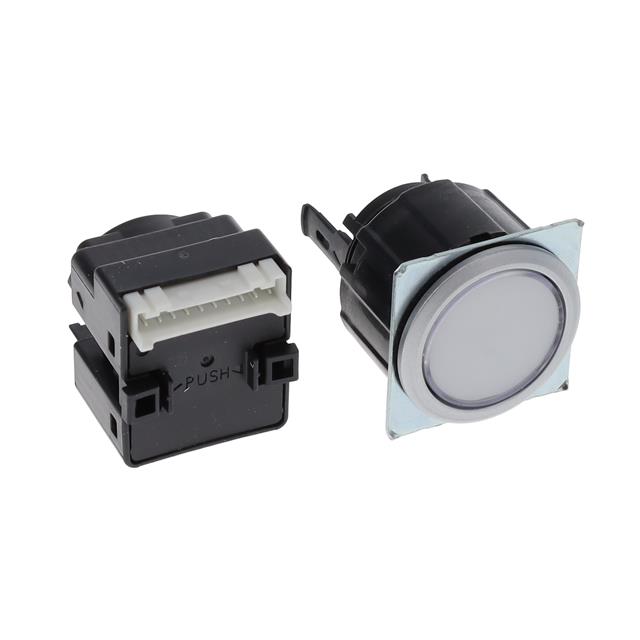

Omron Automation and Safety A3UL-TMW-2A2C-5M	200000 Cycles	1000000 Cycles	Button Flush Round	Clear	On-Mom	No Marking	55 °C	-20 ░C	100 mA	30 V	Illuminated Standard	25.2 mm	12 VDC	DPDT	LED White	Panel Mount Front	Connector	IP65

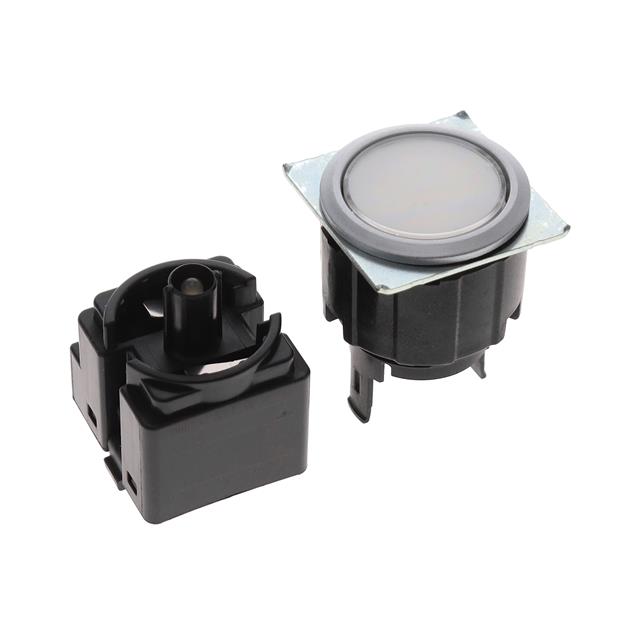

Omron Automation and Safety A3UL-TMW-3A2C-M	200000 Cycles	1000000 Cycles	Button Flush Round	Clear	On-Mom	No Marking	55 °C	-20 ░C	100 mA	30 V	Illuminated Standard	25.2 mm	24 V	DPDT	LED White	Panel Mount Front	Connector	IP40
Omron Automation and Safety A3UL-TMW-1A2C-5M	200000 Cycles	1000000 Cycles	Button Flush Round	Clear	On-Mom	No Marking	55 °C	-20 ░C	100 mA	30 V	Illuminated Standard	25.2 mm	5 VDC	DPDT	LED White	Panel Mount Front	Connector	IP65

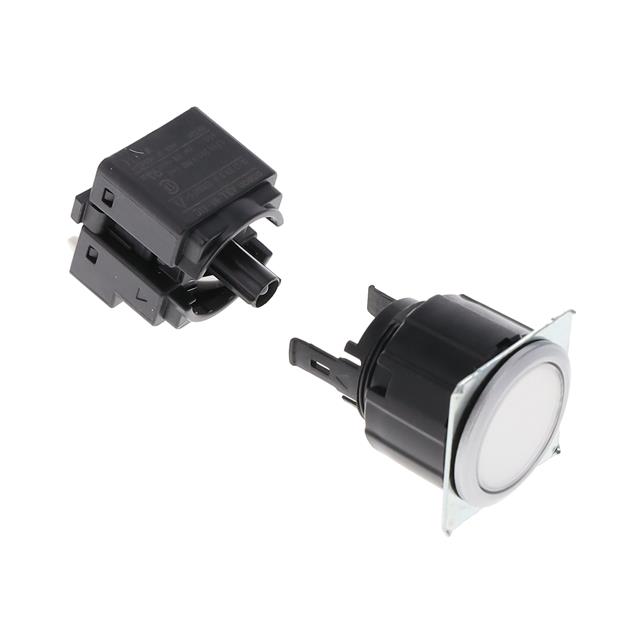

Omron Automation and Safety A3UL-TMW-1A1C-M	200000 Cycles	1000000 Cycles	Button Flush Round	Clear	On-Mom	No Marking	55 °C	-20 ░C	100 mA	30 V	Illuminated Standard	25.2 mm	5 VDC	SPDT	LED White	Panel Mount Front	Connector	IP40

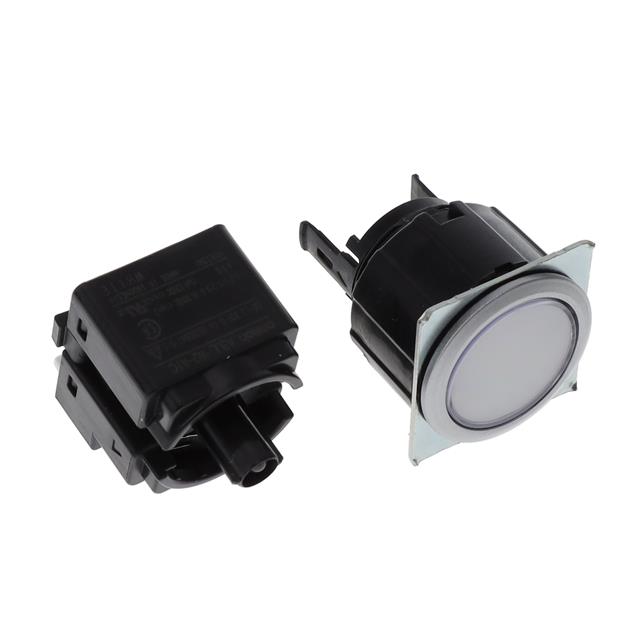

Omron Automation and Safety A3UL-TMW-2A1C-5M	200000 Cycles	1000000 Cycles	Button Flush Round	Clear	On-Mom	No Marking	55 °C	-20 ░C	100 mA	30 V	Illuminated Standard	25.2 mm	12 VDC	SPDT	LED White	Panel Mount Front	Connector	IP65
Omron Automation and Safety A3UL-TMW-3A2C-5M	200000 Cycles	1000000 Cycles	Button Flush Round	Clear	On-Mom	No Marking	55 °C	-20 ░C	100 mA	30 V	Illuminated Standard	25.2 mm	24 V	DPDT	LED White	Panel Mount Front	Connector	IP65
