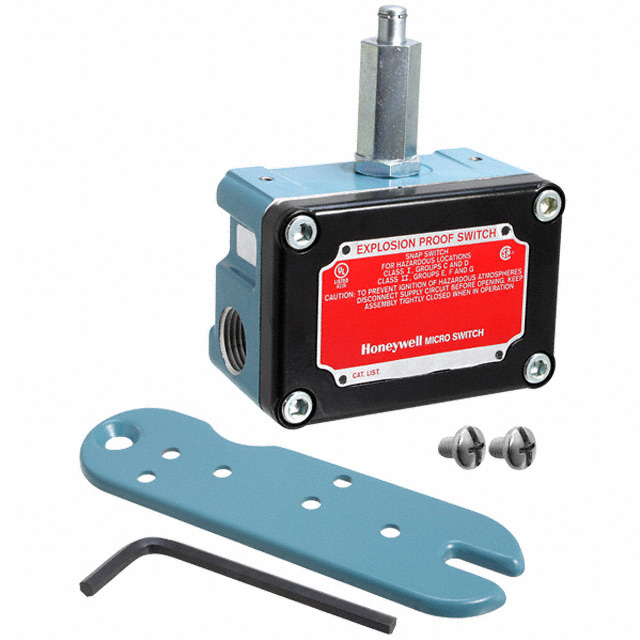

EX-Q Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 5A 125V
| Part | Pretravel | Pretravel | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Release Force | Mounting Type | Switch Function | Operating Force | Voltage Rating - DC | Overtravel | Overtravel | Circuit | Actuator Type | Differential Travel | Differential Travel | Operating Position | Operating Position | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 0.078 " | 2 mm | 125 V | Screw Terminal | 5 A 500 mA | 204 °C | -40 °C | 340 gf | Chassis Mount | On-Mom | 1360 gf | 125 VDC | 4.75 mm | 0.187 in | SPDT | Round (Pin Plunger) | 0.1 mm | 0.004 in | 47.2 mm | 1.859 in | Explosion Proof |
Honeywell Sensing and Productivity Solutions | 0.078 " | 2 mm | 125 V | Screw Terminal | 15 A 500 mA | 340 gf | Chassis Mount | On-Mom | 1361 gf | 125 VDC | 4.78 mm | 0.188 " | SPDT | Round (Pin Plunger) | 0.1 mm | 0.004 in |
