5220 Series

Catalog

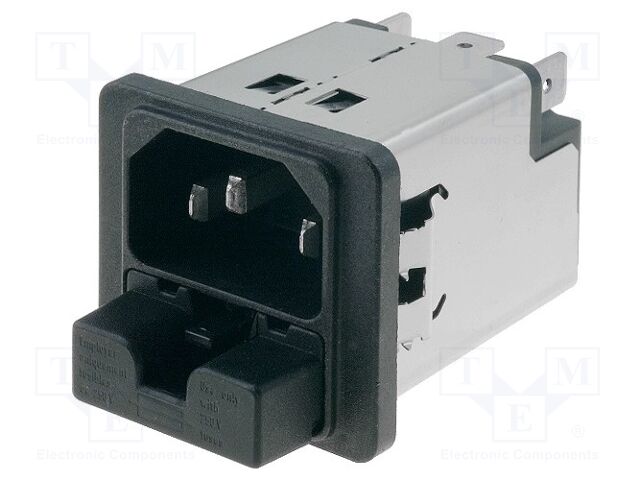

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); 5220

Part	Ingress Protection	Current Rating - Filter	Termination	Termination	Termination	Fuse Holder, Drawer	Connector Style	Approval Agency	Current Rating - Appliance Inlet	Filter Type	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Material Flammability Rating	Mounting Type	Voltage Rating - Appliance Inlet	Panel Thickness	Panel Thickness [Max]	Panel Thickness [Min]

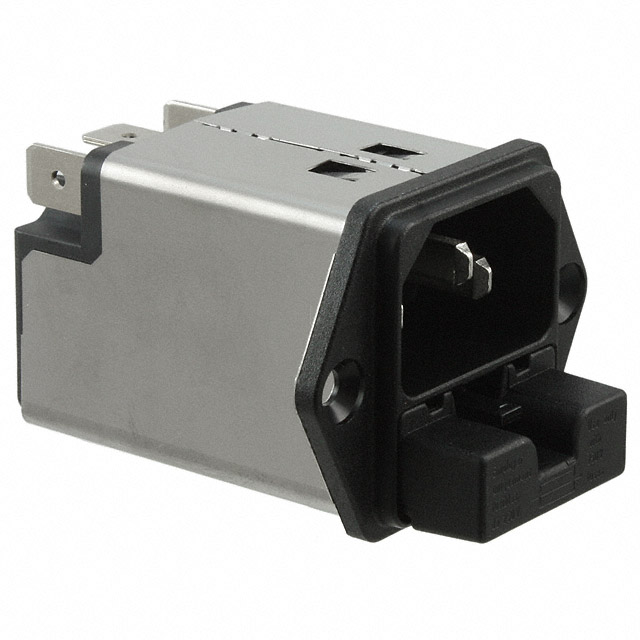

SCHURTER Inc. 5220.1023.3	IP40	10 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	10 A	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Flange Panel Mount	250 VAC
SCHURTER Inc. 5220.0243.3	IP40	2 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	2 A	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Panel Mount Snap-In	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "

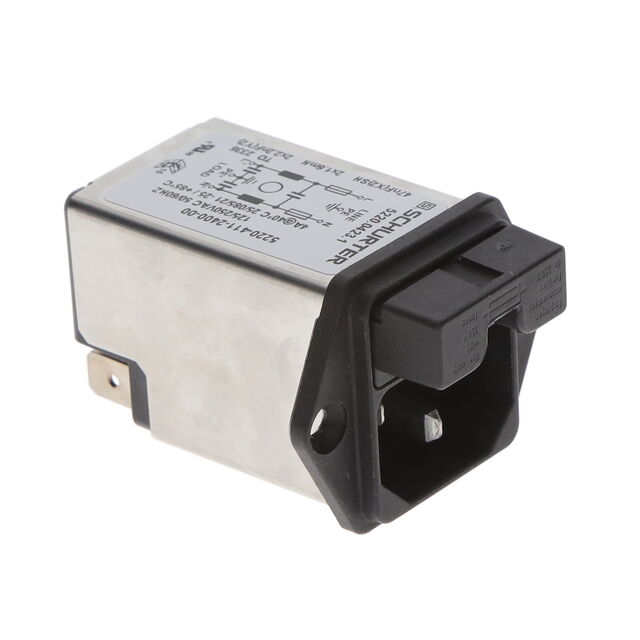

SCHURTER Inc. 5220.0423.1	IP40	4 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	4 A	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Flange Panel Mount	250 VAC

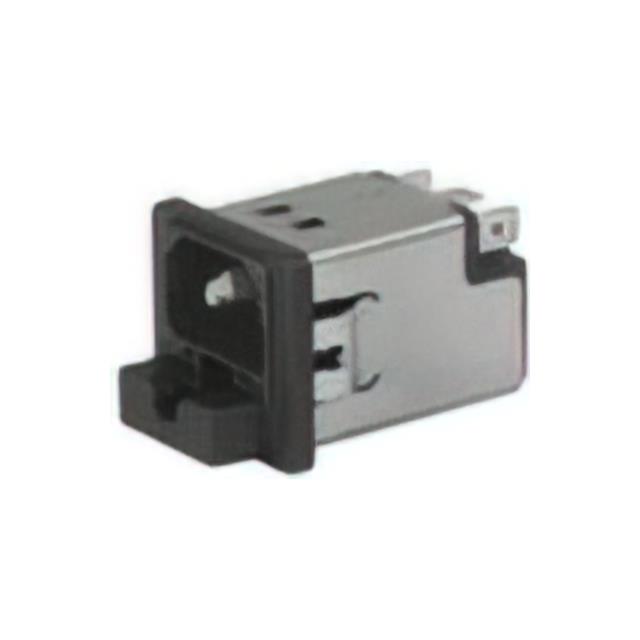

SCHURTER Inc. 5220.0443.1	IP40	4 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	4 A	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Panel Mount Snap-In	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "
SCHURTER Inc. 5220.0623.3	IP40	6 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	6 A	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Flange Panel Mount	250 VAC

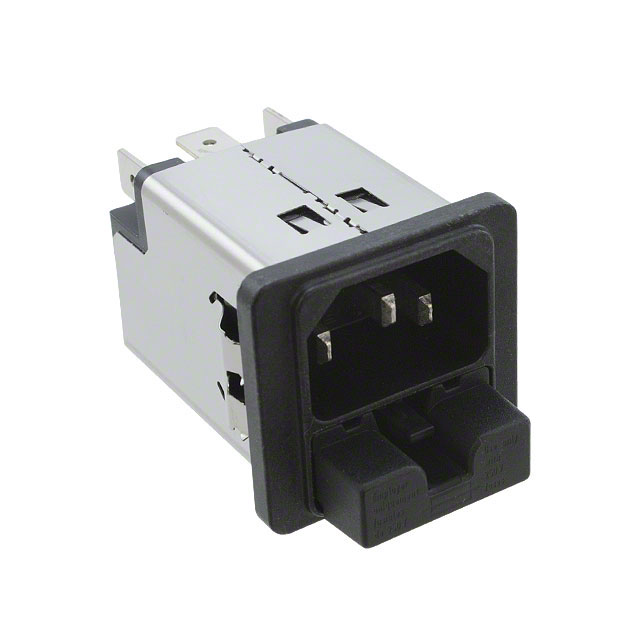

SCHURTER Inc. 5220.0443.3	IP40	4 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	4 A	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Panel Mount Snap-In	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "
SCHURTER Inc. 5220.0223.1	IP40	2 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	2 A	Filtered (EMI RFI) - Commercial	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Flange Panel Mount	250 VAC
SCHURTER Inc. 5220.0123.3	IP40	1 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	1 A	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Flange Panel Mount	250 VAC
SCHURTER Inc. 5220.0443.3.01	IP40	4 A	6.3 mm	Quick Connect	0.25 "	Fuse Holder	IEC 320-C14	cULus ENEC	4 A	Filtered (EMI RFI) - Commercial Medical	Receptacle Male Blades - Module	29 mm	32 mm	UL94 V-0	Panel Mount Snap-In	250 VAC	0.79 mm 3 mm	0.118 in	0.031 "
