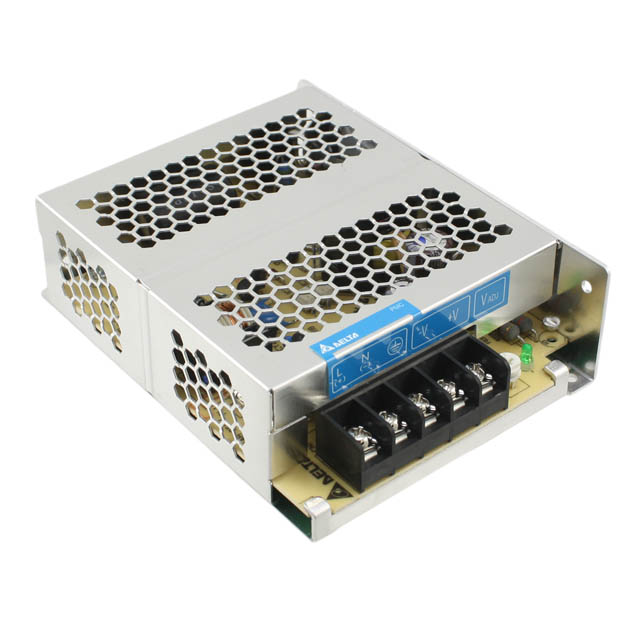

PMC-12 Series

Catalog

AC/DC CONVERTER 12V 50W

Part	Mounting Type	Features	Efficiency	Approval Agency	Type	Power (Watts)	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output 1	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Standard Number	Size / Dimension [z]	Size / Dimension [y]
Delta Electronics PMC-12V050W1AA	Chassis Mount	Adjustable Output DC Input Capable Universal Input	83 %	CB CCC CE cURus TUVgs	Enclosed	50 W	ITE (Commercial)	70 °C	-20 °C	128 mm	97 mm	3.82 in	5.04 "	38 mm	1.5 in	4.17 A	12 V	1	3000 V
Delta Electronics PMC-12V060W1NA	Chassis Mount	Adjustable Output DC Input Capable Universal Input	86 %	CB Scheme CE EAC EN NEC Class 2 SIQ UL	Conformal Coated Enclosed	60 W	ITE (Commercial)	70 °C	-20 °C	128 mm	97 mm	3.82 in	5.04 "	38 mm	1.5 in	5 A	12 V	1	3000 V	50581 55024 55032 60950-1 61000-3-2 61000-3-3
Delta Electronics PMC-12V100W1AA	Chassis Mount	Adjustable Output DC Input Capable Universal Input	84 %	CB CCC CE cURus TUVgs	Enclosed	100 W	ITE (Commercial)	70 °C	-20 °C	6.22 " 158 mm	3.82 " 97 mm			1.5 in 38 mm		8.33 A	12 V	1	3000 V

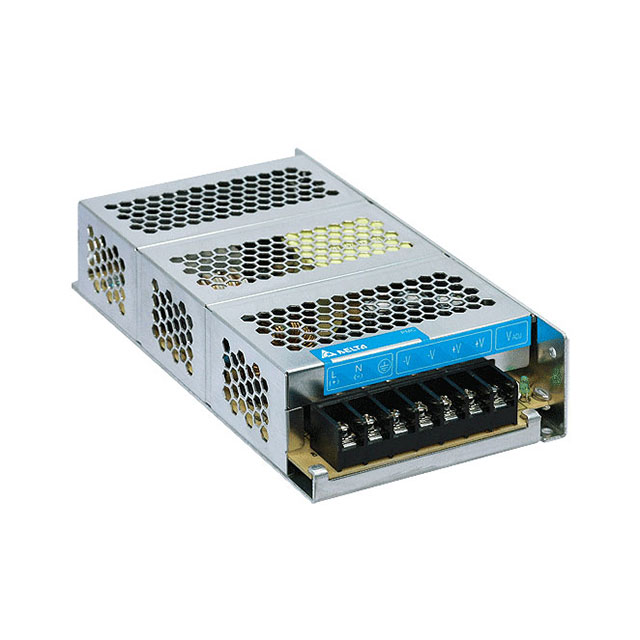

Delta Electronics PMC-12V150W1BL	Chassis Mount	Adjustable Output DC Input Capable PFC Universal Input	88 %	CB CCC CE cURus TUVgs	Enclosed	150 W	ITE (Commercial)	70 °C	-10 °C	178 mm		3.82 in	7.01 in		1.5 in	12.5 A	12 V	1	3000 V		38 mm	97 mm

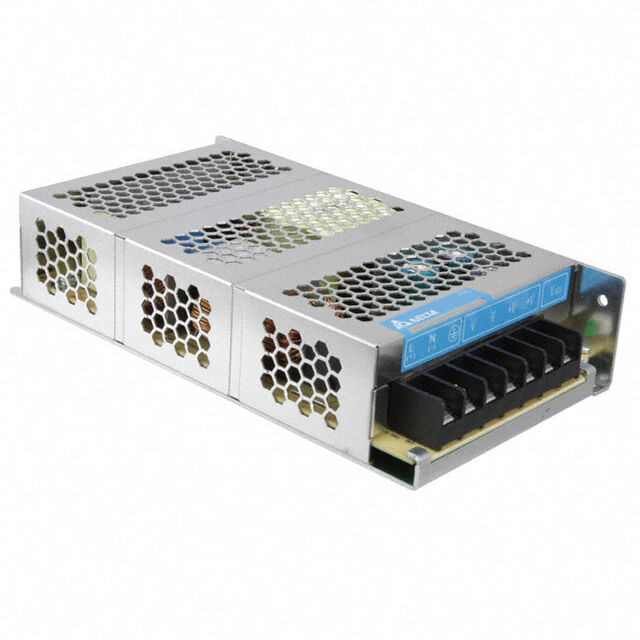

Delta Electronics PMC-12V150W1BA	Chassis Mount	Adjustable Output DC Input Capable PFC Universal Input	88 %	CB CCC CE cURus TUV	Enclosed	150 W	ITE (Commercial)	70 °C	-20 °C	178 mm		3.82 in	7.01 in		1.5 in	12.5 A	12 V	1	3000 V		38 mm	97 mm
