6304 Series
Manufacturer: Bourns Inc.
Beta
⌘K

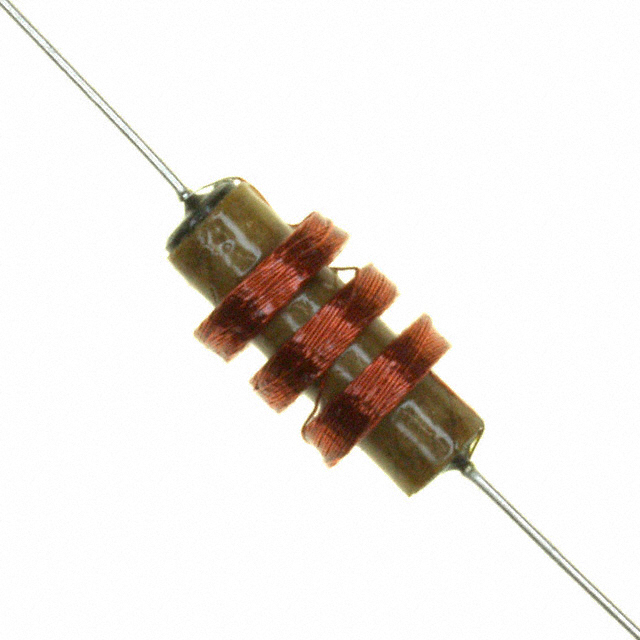

FIXED IND 5MH 160MA 14 OHM TH
| Part | Current Rating (Amps) | Type | Inductance | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Material - Core | Shielding | Package / Case | Q @ Freq | Mounting Type | DC Resistance (DCR) [Max] | Size / Dimension [diameter] | Size / Dimension [x] | Frequency - Self Resonant |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 160 mA | Drum Core Wirewound | 5 mH | 252 kHz | -55 C | 105 ░C | 5 % | Ferrite | Unshielded | Axial | 80 252 kHz | Through Hole | 14 Ohm | 0.53 " 13.46 mm | 0.875 in 22.22 mm | 1 MHz |
