3120-N Series

Manufacturer: E-T-A

Catalog

CIRCUIT BREAKERS THE 3120-N THERMAL CIRCUIT BREAKER/SWITCH COMBINATION UNITES OVERCURRENT PROTECTION AND THE FUNCTION OF AN ON/OFF SWITCH WITHIN A SINGLE COMPONENT. THE TRIP ELEMENT IS A THERMAL BIMETAL. TYPE 3120-N IS IDEALLY SUITED FOR OVERLOAD PROTECT

...

Part	Illumination	Voltage Rating - AC	Voltage Rating - DC	Breaker Type	Approval Agency	Illumination Voltage (Nominal)	Number of Poles	Mounting Type	Actuator Type	Current Rating (Amps)
E-T-A 3120-N521-P7T1-W19DG3-6A	Green	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	2	Panel Mount	Rocker	6 A
E-T-A 3120-N31A-H7T1-W12LY3-5A	White	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	1	Panel Mount	Rocker	5 A
E-T-A 3120-N524-P7T1-W02D-20A	None	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		2	Panel Mount	Rocker	20 A
E-T-A 3120-N311-P7T1-W15GY3-3A	Orange	240 V	50 VDC	Thermal Magnetic	CSA C22.2 No 235 EN 60934 GB 17701 IEC 60934 KC 60934 UL1077	115 V	1	Panel Mount Snap-In	Rocker	3 A
E-T-A 3120-N523-P7T1-W01L-6A	None	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		2	Panel Mount	Rocker	6 A

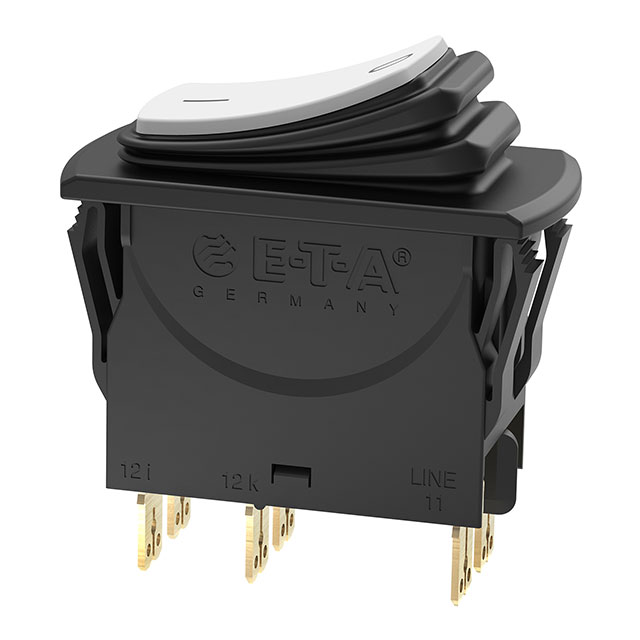

E-T-A 3120-N311-P7T1-W12LY3-16A	White	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	1	Panel Mount	Rocker	16 A

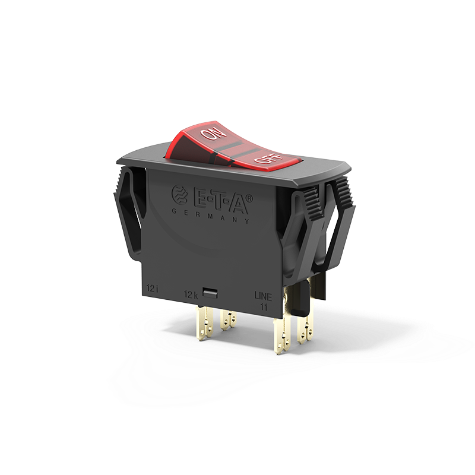

E-T-A 3120-N321-P7T1-W14DR3-12A	Red	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	2	Panel Mount	Rocker	12 Amps
E-T-A 3120-N323-P7T1-W19DG4-7A	Green	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	230 V	2	Panel Mount	Rocker	7 A
E-T-A 3120-N323-P7T1-W15DY3-10A	Orange	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077	115 V	2	Panel Mount	Rocker	10 A
E-T-A 3120-N321-P7T1-W04L-10A	None	415 V	50 VDC	Thermal	CSA C22.2 No 235 GB 17701 IEC 60934 UL1077		2	Panel Mount	Rocker	10 A
