RA1122X Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH ROCKER SPST 15A 125V
| Part | Mounting Type | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Approval Agency | Illumination Type, Color | Color - Actuator/Cap | Switch Function | Actuator Type | Current Rating (Amps) | Voltage Rating - AC | Termination Style | Actuator Marking | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

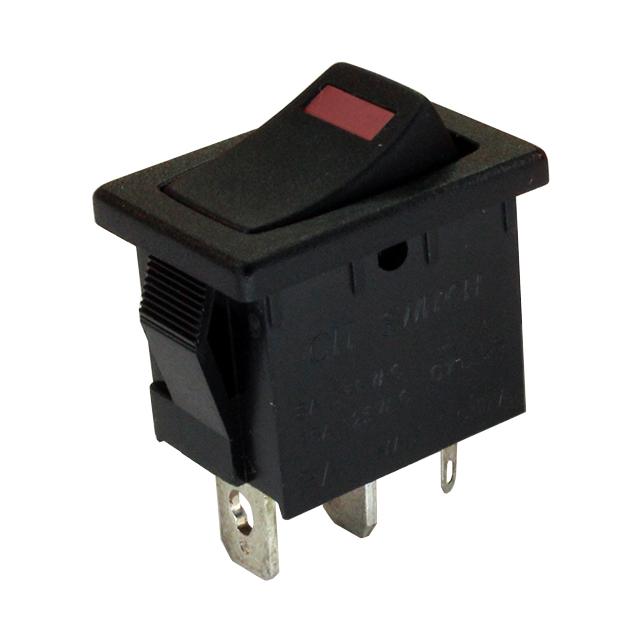

 CIT Relay and Switch | Panel Mount Right Angle Snap-In | 10000 Cycles | -40 C | 105 ░C | SPST | 19.4 mm | 13 mm | cULus | LED Red | Black | On-Off | Concave (Curved) - Illuminated | 15 A | 125 V | PC Pin | No Marking | ||

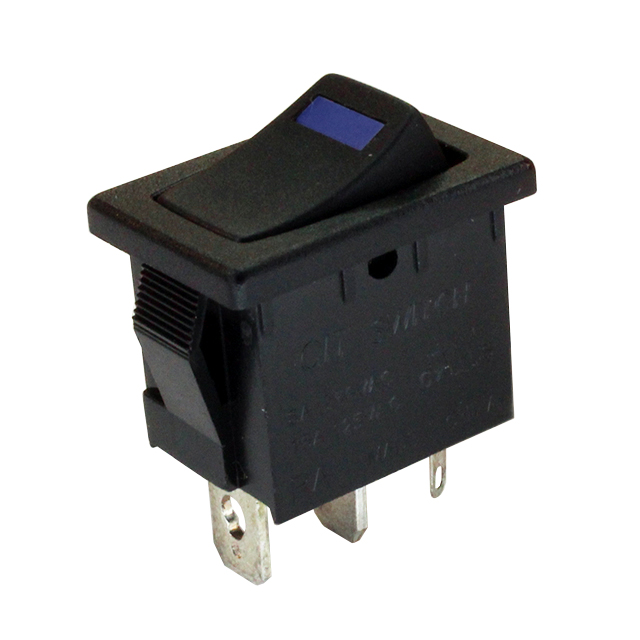

 CIT Relay and Switch | Panel Mount Snap-In | 10000 Cycles | -40 C | 105 ░C | SPST | 19.4 mm | 13 mm | cULus | Blue LED | Black | On-Off | Concave (Curved) - Illuminated | 15 A | 125 V | Solder Quick Connect | No Marking | 4.7 mm | 0.187 in |
 CIT Relay and Switch | Panel Mount Snap-In | 10000 Cycles | -40 C | 105 ░C | SPST | cULus | Green LED | Black | On-Off | Concave (Curved) - Illuminated | 15 A | 125 V | Solder Quick Connect | No Marking | 4.7 mm | 0.187 in |
