20.23.8 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

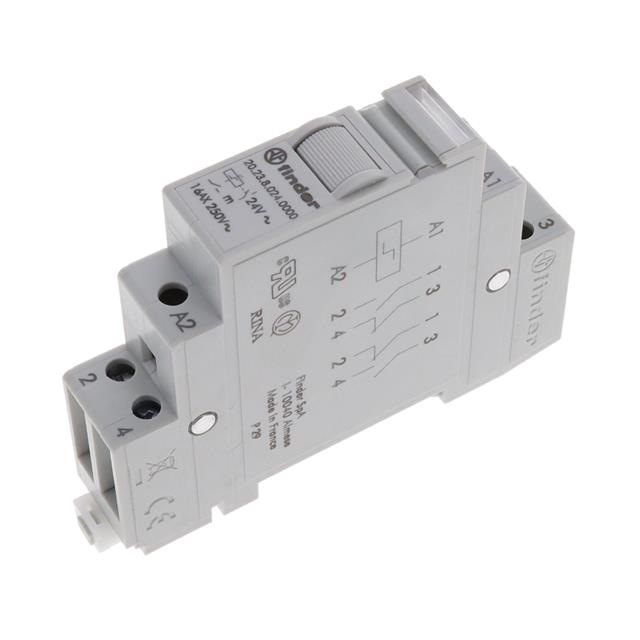

RELAY IMPULSE DPST 16A 24V
| Part | Coil Resistance | Switching Voltage [Max] | Coil Current | Contact Form | Load - Max Switching | Features | Relay Type | Contact Rating (Current) | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Approval Agency | Coil Voltage | Coil Type | Mounting Type | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 27 Ohms | 400 VAC | 275 mA | DPST-NO/NC (1 Form A 1 Form B) | 6400 VA | Mechanical Indicator Test Button | Impulse | 16 A | Silver Nickel (AgNi) | 40 °C | -40 C | Screw Terminal | CE cULus EAC RINA UKCA | 24 VAC | Latching Single Coil | DIN Rail | |
 Finder Relays, Inc. | 2.7 kOhms | 400 VAC | 27.5 mA | DPST-NO/NC (1 Form A 1 Form B) | 6400 VA | Mechanical Indicator Test Button | Impulse | 16 A | Silver Nickel (AgNi) | 40 °C | -40 C | Screw Terminal | CE cULus EAC RINA UKCA | 240 VAC/DC | Latching Single Coil | DIN Rail | 204 VAC |
 Finder Relays, Inc. | 27 Ohms | 400 VAC | 275 mA | DPST-NO/NC (1 Form A 1 Form B) | 6400 VA | Mechanical Indicator Test Button | Impulse | 16 A | Silver Tin Oxide (AgSnO) | 40 °C | -40 C | Screw Terminal | CE cULus EAC RINA UKCA | 24 VAC | Latching Single Coil | DIN Rail | |
Finder Relays, Inc. | 2500 Ohms | 400 VAC | 28 mA | DPST-NO/NC (1 Form A 1 Form B) | 6400 VA | Mechanical Indicator Test Button | Impulse | 16 A | Silver Nickel (AgNi) | 40 °C | -40 C | Screw Terminal | CE cULus EAC RINA UKCA | 230 VAC | Latching Single Coil | DIN Rail | 192 VAC |
