9000-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

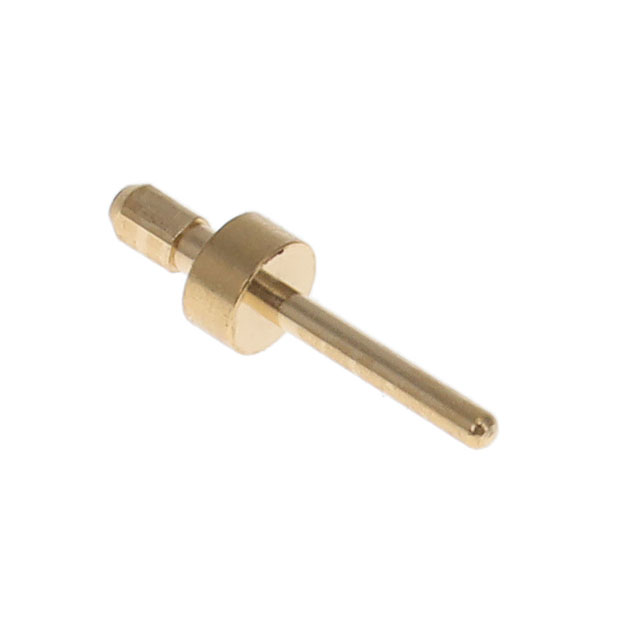

CONN PC PIN CIRC .018DIA GOLD
| Part | Length - Above Flange [custom] | Length - Above Flange [custom] | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Type | Contact Finish | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.125 in | 3.18 mm | 0.25 Ám | 10 Áin | 0.025 in | 0.64 mm | Brass Alloy | 0.056 " | 1.42 mm | Non-Insulated | 0.06 " | 1.52 mm | Pentagon Press-Fit | 0.018 in | 0.46 mm | 0.215 in | 5.46 mm | PC Pin | Through Hole | Gold | Single End |
