1757835 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

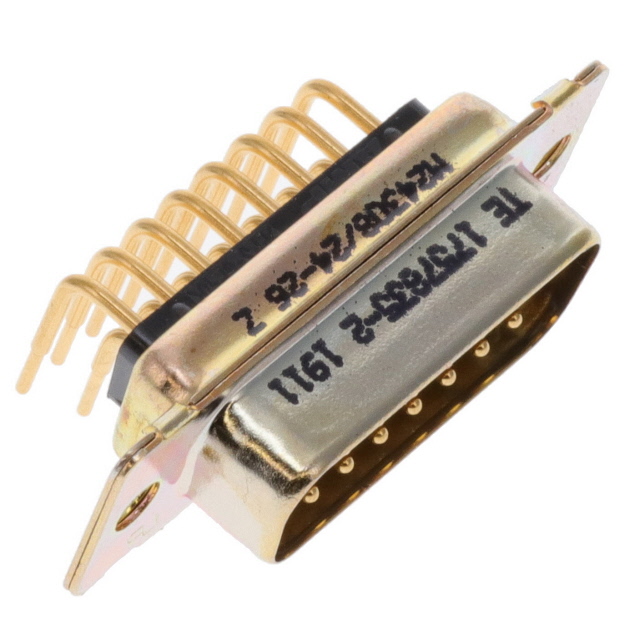

CONN D-SUB PLUG 15POS R/A SLDR
| Part | Contact Type | Shell Material, Finish | Number of Positions | Backset Spacing | Backset Spacing | Connector Type | Mounting Type | Contact Material | Connector Style | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout | Flange Feature | Color | Contact Finish | Current Rating (Amps) | Termination | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Signal | Steel Yellow Chromate Plated Zinc | 15 | 8.08 mm | 0.318 " | Male Pins Plug | Through Hole Right Angle | Brass | D-Sub | 2 | -55 °C | 125 °C | 10 Áin | 0.25 Ám | 2 | Housing/Shell (Unthreaded) | Black | Gold | 5 A | Solder | |
TE Connectivity Aerospace, Defense and Marine | Signal | Steel Yellow Chromate Plated Zinc | 37 | 8.08 mm | 0.318 " | Male Pins Plug | Through Hole Right Angle | Brass | D-Sub | 2 | -55 °C | 125 °C | 10 Áin | 0.25 Ám | Housing/Shell (Unthreaded) | Black | Gold | 5 A | Solder | 4 (DC C) |
