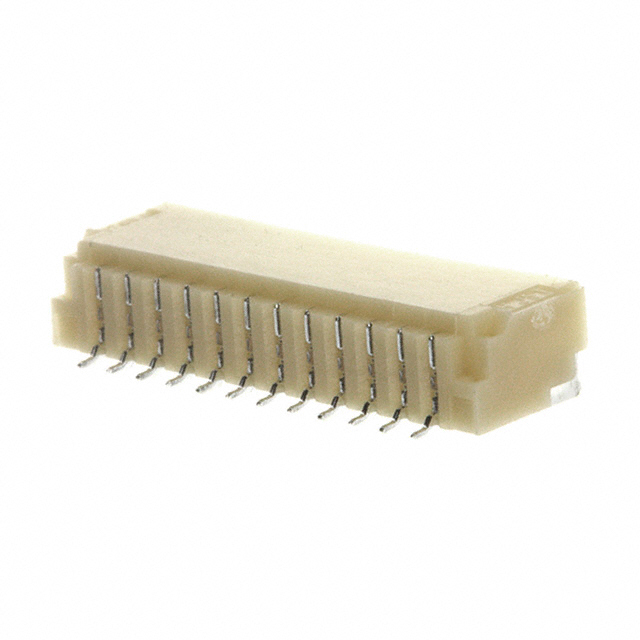

SM12B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 12POS 1MM
| Part | Insulation Color | Insulation Height | Insulation Height | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Contact Material | Style | Termination | Voltage Rating | Number of Rows | Number of Positions | Number of Positions Loaded | Insulation Material | Mounting Type | Contact Shape | Material Flammability Rating | Features | Fastening Type | Contact Type | Shrouding | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | 0.114 in | 2.9 mm | Tin | 1 mm | 0.039 in | Copper Alloy | Board to Cable/Wire | Solder | 50 V | 1 | 12 | All | Nylon Polyamide (PA) | Right Angle Surface Mount | Square | UL94 V-0 | Solder Retention | Push-Pull | Male Pin | Shrouded - 4 Wall | Header | 85 °C | -25 °C |
