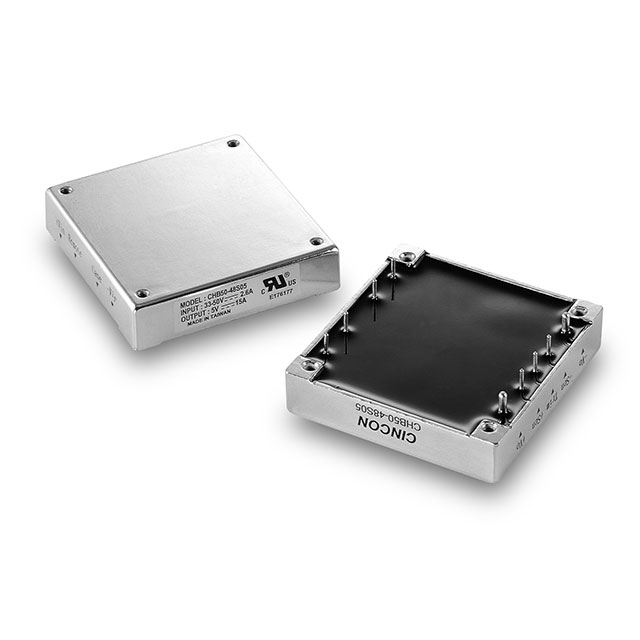

CHB50W Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - DIN RAIL MOUNT

Part	Efficiency	Number of Outputs	Input Type	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	DC Voltage - Input (Max) [Max]	Voltage - Output 1	Features	Applications	Approval Agency	Voltage - Input (Max) [Max]	Type	Mounting Type	Voltage - Input (Min) [Min]	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Control Features	Package / Case	Supplier Device Package

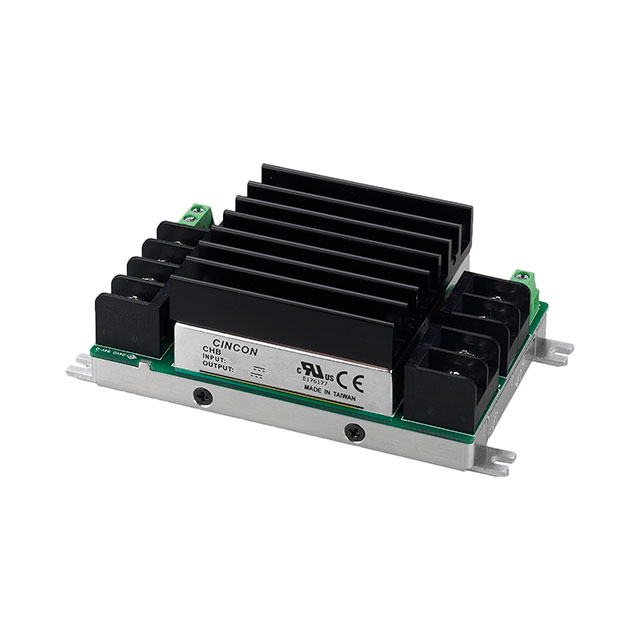

Cincon Electronics Co. LTD CHB50W-48S12-DIN	85 %	1	DC	18 V	4.16 A	1.5 kV	-40 °C	100 °C	50 W	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm	75 V	12 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	CE cURus
Cincon Electronics Co. LTD CHB50W-48S48-DIN	84 %	1	DC	18 V	1.04 A	1.5 kV	-40 °C	100 °C	50 W	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm	75 V	48 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	CE cURus
Cincon Electronics Co. LTD CHB50W-24S48-CM	83 %	1			1.04 A	1.5 kV	-40 °C	100 °C	50 W	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm		48 V		ITE (Commercial)	CE cURus	36 V	Enclosed	Chassis Mount	9 V

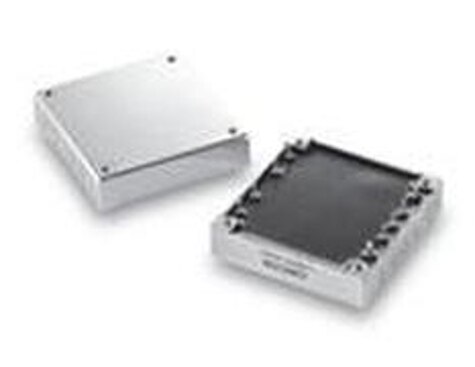

Cincon Electronics Co. LTD CHB50W-48S48	84 %	1			1.04 A	1.5 kV	-40 °C	100 °C	50 W	12.7 mm	57.9 mm	61 mm		48 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	CE cURus	75 V	Isolated Module	Through Hole	18 V	60950-1	2.28 in	2.4 in	0.5 in	Active High Enable	Half Brick	Half Brick

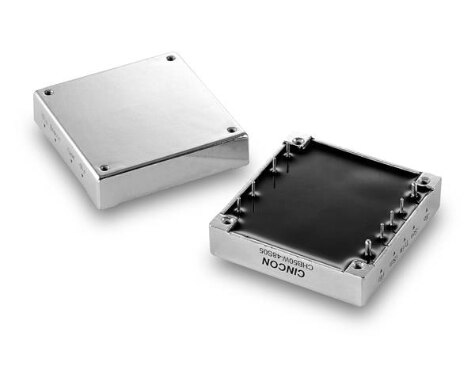

Cincon Electronics Co. LTD CHB50W-24S28N	83 %	1			1.78 A	1.5 kV	-40 °C	100 °C	50 W	12.7 mm	57.9 mm	61 mm		28 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	CE cURus	36 V	Isolated Module	Through Hole	9 V	60950-1	2.28 in	2.4 in	0.5 in	Active Low Enable	Half Brick	Half Brick
Cincon Electronics Co. LTD CHB50W-24S33-CM	79 %	1			10 A	1.5 kV	-40 °C	100 °C	33 W	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm		3.3 V		ITE (Commercial)	CE cURus	36 V	Enclosed	Chassis Mount	9 V
Cincon Electronics Co. LTD CHB50W-48S33-DIN	81 %	1	DC	18 V	10 A	1.5 kV	-40 °C	100 °C	33 W	1.03 " 26.2 mm	2.54 in 64.6 mm	3.98 in 101.2 mm	75 V	3.3 V	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)	CE cURus
Cincon Electronics Co. LTD CHB50W-48S05	83 %	1			10 A	1.5 kV	-40 °C	100 °C	50 W	12.7 mm	57.9 mm	61 mm		5 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	CE cURus	75 V	Isolated Module	Through Hole	18 V	60950-1	2.28 in	2.4 in	0.5 in	Active High Enable	Half Brick	Half Brick
Cincon Electronics Co. LTD CHB50W-24S05N	81 %	1			10 A	1.5 kV	-40 °C	100 °C	50 W	12.7 mm	57.9 mm	61 mm		5 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	CE cURus	36 V	Isolated Module	Through Hole	9 V	60950-1	2.28 in	2.4 in	0.5 in	Active Low Enable	Half Brick	Half Brick
Cincon Electronics Co. LTD CHB50W-48S28	85 %	1			1.78 A	1.5 kV	-40 °C	100 °C	50 W	12.7 mm	57.9 mm	61 mm		28 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	CE cURus	75 V	Isolated Module	Through Hole	18 V	60950-1	2.28 in	2.4 in	0.5 in	Active High Enable	Half Brick	Half Brick
