637-M26 Series
Manufacturer: EDAC Inc.
Beta
⌘K

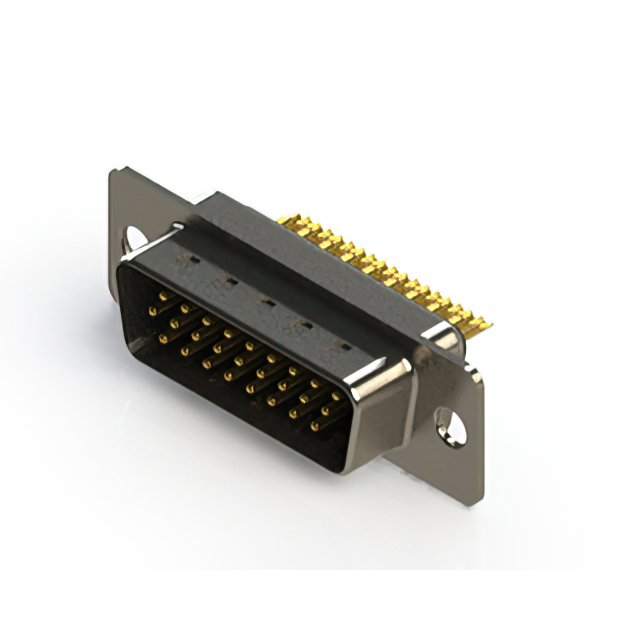

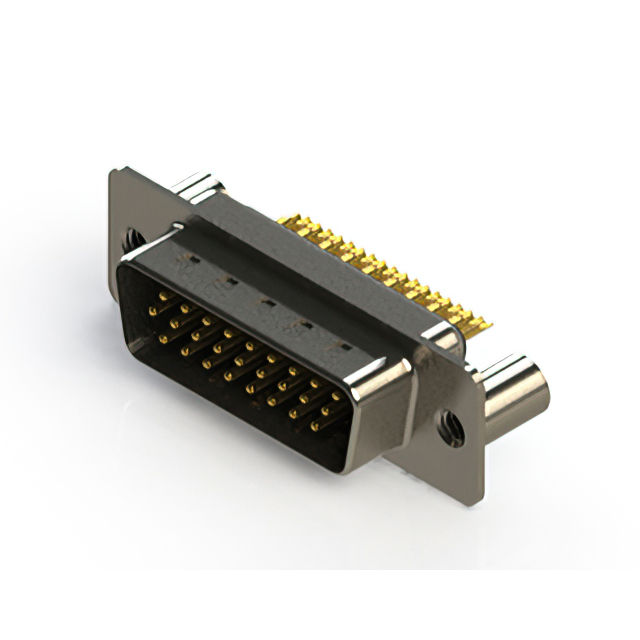

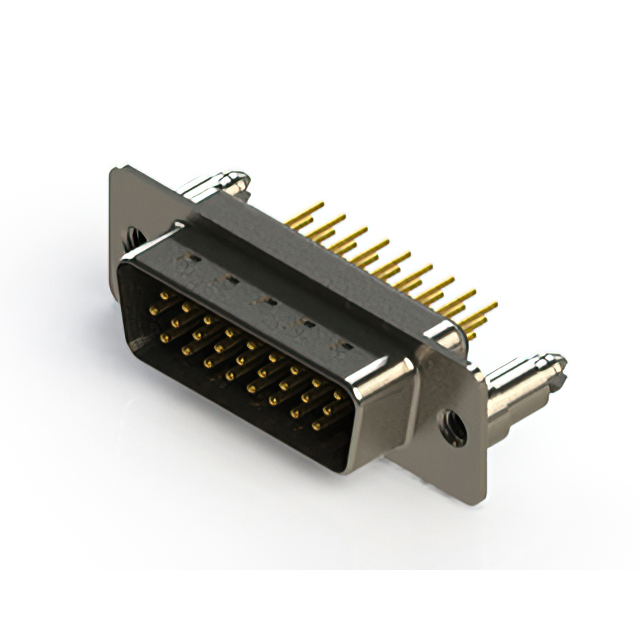

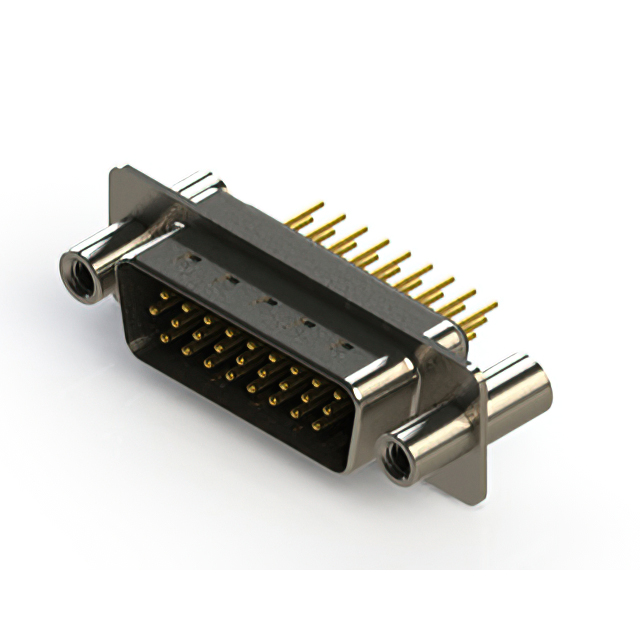

637M SERIES VERTICAL D-SUB PLUG
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Color | Mounting Type | Flange Feature | Flange Feature | Contact Finish | Number of Rows [custom] | Material Flammability Rating | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Features | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Current Rating (Amps) | Number of Positions | Termination | Contact Finish Thickness | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Free Hanging (In-Line) | Housing/Shell | 4-40 | Gold | 3 | UL94 V-0 | Plug Male Pins | 0.38 µm | 15 µin | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Through Hole | Housing/Shell | 4-40 | Gold | 3 | UL94 V-0 | Plug Male Pins | 0.76 Ám | 30 Áin | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Solder | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Gold | 3 | UL94 V-0 | Plug Male Pins | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Flash | |||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Through Hole | Housing/Shell | 4-40 | Gold | 3 | UL94 V-0 | Plug Male Pins | 0.76 Ám | 30 Áin | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Solder | Nickel Plated Steel | |
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | Gold | 3 | UL94 V-0 | Plug Male Pins | 0.76 Ám | 30 Áin | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Nickel Plated Steel | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Free Hanging (In-Line) | Housing/Shell | 4-40 | Gold | 3 | UL94 V-0 | Plug Male Pins | 0.38 µm | 15 µin | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Through Hole | Housing/Shell (Unthreaded) | Gold | 3 | UL94 V-0 | Plug Male Pins | 0.76 Ám | 30 Áin | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Solder | |||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Free Hanging (In-Line) | Housing/Shell | 4-40 | Gold | 3 | UL94 V-0 | Plug Male Pins | Signal | Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Flash | ||||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Through Hole | Housing/Shell | 4-40 | Gold | 3 | UL94 V-0 | Plug Male Pins | Signal | Board Lock Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Solder | Flash | Nickel Plated Steel | ||
 EDAC Inc. | -55 C | 125 °C | Copper Alloy | Nylon 9T Polyamide (PA9T) | Black | Through Hole | Housing/Shell | 4-40 | Gold | 3 | UL94 V-0 | Plug Male Pins | 0.76 Ám | 30 Áin | Signal | Board Lock Grounding Indents Shielded | D-Sub High Density | 2 | DA A | 5 A | 26 | Solder |
