RK73B1E Series

Manufacturer: KOA Speer Electronics, Inc.

Catalog

Catalog

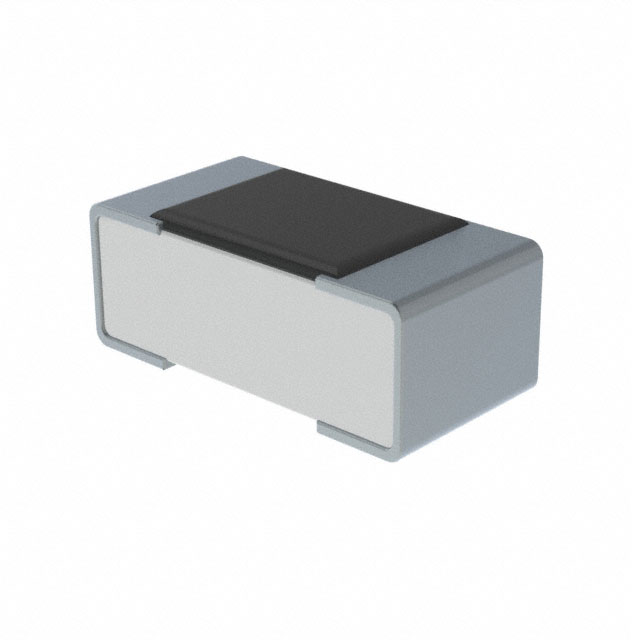

RES 18 OHM 5% 1/10W 0402

...

Part	Tolerance	Composition	Ratings	Number of Terminations [custom]	Features	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Supplier Device Package	Power (Watts)	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max)	Resistance
KOA Speer Electronics, Inc. RK73B1ERTTP180J	5 %	Thick Film	AEC-Q200	2	Anti-Sulfur Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	18 Ohms
KOA Speer Electronics, Inc. RK73B1ERTTP115G	2 %	Thick Film	AEC-Q200	2	Anti-Sulfur Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	1.1 MOhms
KOA Speer Electronics, Inc. RK73B1ERTTP113J	5 %	Thick Film	AEC-Q200	2	Anti-Sulfur Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	11 kOhms
KOA Speer Electronics, Inc. RK73B1ETTP364J	5 %	Thick Film	AEC-Q200	2	Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	360 kOhms
KOA Speer Electronics, Inc. RK73B1ETTP112J	5 %	Thick Film	AEC-Q200	2	Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	1100 Ohms
KOA Speer Electronics, Inc. RK73B1ERTTP474J	5 %	Thick Film	AEC-Q200	2	Anti-Sulfur Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	470 kOhms
KOA Speer Electronics, Inc. RK73B1ETTP184G	2 %	Thick Film	AEC-Q200	2	Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	180 kOhms
KOA Speer Electronics, Inc. RK73B1ERTTP133G	2 %	Thick Film	AEC-Q200	2	Anti-Sulfur Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	13 kOhms
KOA Speer Electronics, Inc. RK73B1ETTP154J	5 %	Thick Film	AEC-Q200	2	Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	150000 Ohms
KOA Speer Electronics, Inc. RK73B1ERTTP821J	5 %	Thick Film	AEC-Q200	2	Anti-Sulfur Automotive AEC-Q200	0402 (1005 Metric)	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/°C	0402	0.1 W	0.1 W	155 C	-55 C	0.016 in	0.4 mm	820 Ohms
