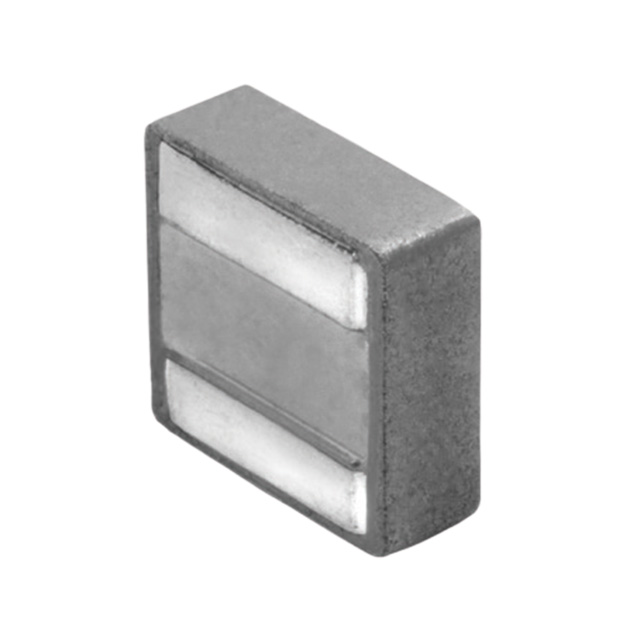

PM2201 Series
Power Inductors - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
Manufacturer: Pulse Electronics
Catalog
Power Inductors - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
Beta
⌘K
Power Inductors - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
Power Inductors - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
Power Inductors - SMD IND, MOLDED POWDER, 4.3X4.3X2.1 SMT
| Part | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Current - Saturation (Isat) | Tolerance | Inductance Frequency - Test | Ratings | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) [Max] | Supplier Device Package | Package / Case | Mounting Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current Rating (Amps) | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 0.161 in | 4.1 mm | 0.161 " | 4.1 mm | 8 A | 20 % | 100 kHz | AEC-Q200 | Unshielded | 155 C | -55 C | 23.5 mOhm | SMD | Nonstandard | Surface Mount | 2.1 mm | 0.083 in | 7.6 A | 1.5 µH |
