1825289 Series

Catalog

SWITCH SLIDE DP3T 300MA 125V

Part	Actuator Type	Contact Timing	Contact Material	Actuator Material	Actuator Length [x]	Mounting Type	Mechanical Life	Switch Function	Contact Finish	Current Rating (Amps)	Circuit	Electrical Life	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Operating Force	Voltage Rating - AC	Voltage Rating - DC

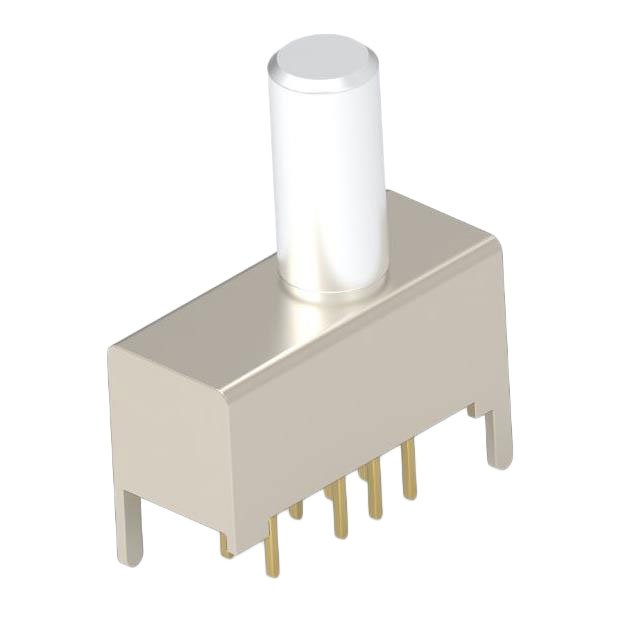

TE Connectivity Raychem Cable Protection 1-1825289-0	Baton	Shorting	Copper Alloy	Aluminum	10 mm	Through Hole	15000 Cycles	On-On-On	Silver	300 mA	DP3T	15000 Cycles	2 mm	85 °C	-20 C	PC Pin	Epoxy Sealed Terminals	600 gf	125 V

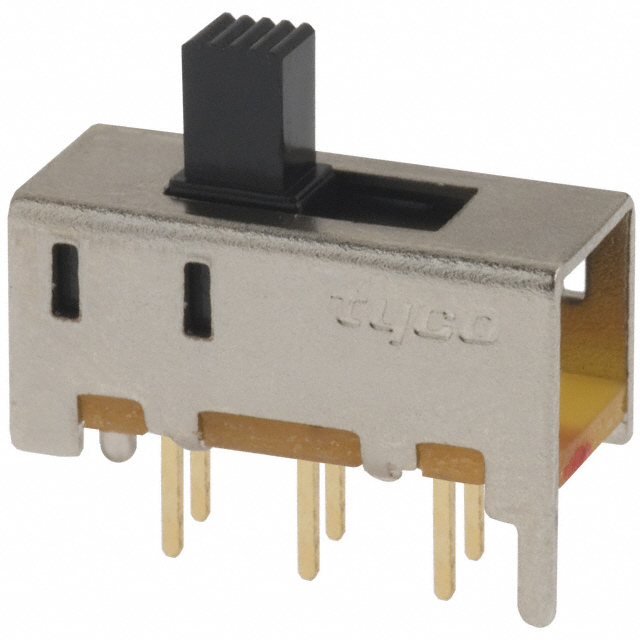

TE Connectivity Raychem Cable Protection 1825289-6	Standard	Shorting	Copper Alloy	Polyoxymethylene (Acetal) (POM)	4.5 mm	Through Hole	15000 Cycles	On-Off-On	Gold	0.4 VA	DPDT	15000 Cycles	2 mm	85 °C	-20 C	PC Pin	Epoxy Sealed Terminals	600 gf	20 V	20 V

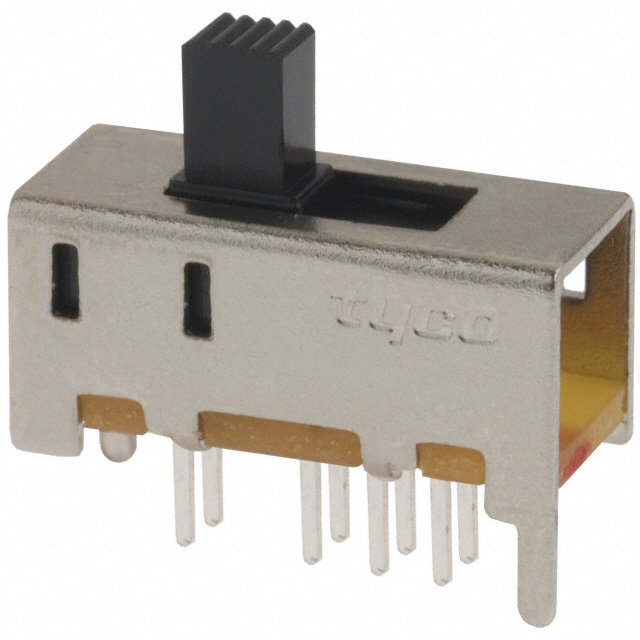

TE Connectivity Raychem Cable Protection 1825289-8	Standard	Shorting	Copper Alloy	Polyoxymethylene (Acetal) (POM)	4.5 mm	Through Hole	15000 Cycles	On-On-On	Silver	300 mA	DP3T	15000 Cycles	2 mm	85 °C	-20 C	PC Pin	Epoxy Sealed Terminals	600 gf	125 V
