TPS7A54-Q1 Series

Automotive 4-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout (LDO) voltage regulator

Catalog

Automotive 4-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout (LDO) voltage regulator

Part	Protection Features	Grade	Voltage Dropout (Max) [Max]	Control Features	Output Type	Package / Case	Output Configuration	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]	Mounting Type	Voltage - Input (Max) [Max]	Number of Regulators	PSRR [Max]	PSRR [Min]	Current - Output	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	Channels per IC	Regulator Type	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output [Max]	Voltage - Output [Min]	Utilized IC / Part	Supplied Contents
Texas Instruments TPS7A5401QRGRRQ1	Over Temperature Reverse Polarity	Automotive	0.51 V	Enable	Adjustable	20-VFQFN Exposed Pad	Positive	AEC-Q100	150 °C	-40 °C	0.8 V	5.1 V	Surface Mount	6.5 V	1	42 dB	25 dB	4 A

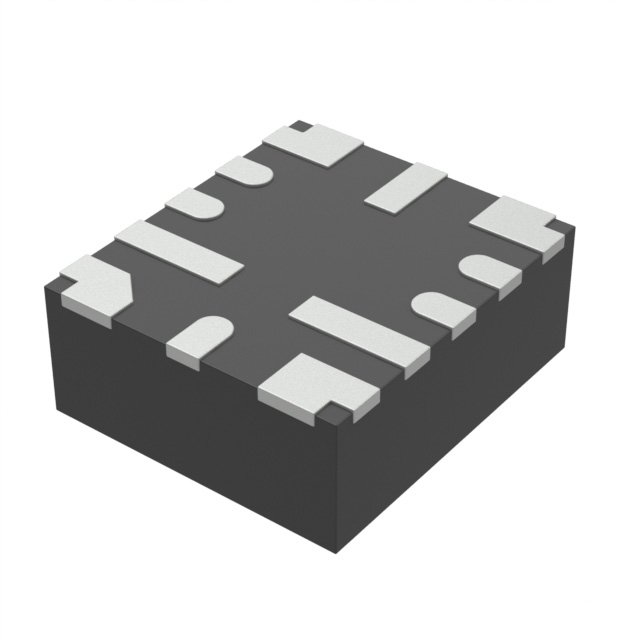

Texas Instruments TPS7A5401RPST	Over Current Over Temperature Under Voltage Lockout (UVLO)		0.565 V	Enable Power Good Soft Start	Adjustable	12-VFQFN	Positive		125 ¯C	-40 °C	0.8 V	5.15 V	Surface Mount	6.5 V	1	42 dB	39 dB	4 A	12-VQFN-HR	2.2	2.5	6 mA	4 mA
Texas Instruments TPS7A54EVM-006																		4 A						1 - Single	Positive Adjustable	Fully Populated	6.5 V	1.1 V	5 V	0.8 V	TPS7A54-Q1	Board(s)

Catalog

Automotive 4-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout (LDO) voltage regulator

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified for Automotive ApplicationsTemperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C4AExtended Junction Temperature (TJ) Range: –40°C to +150°CInput Voltage Range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VAdjustable Output Voltage Range: 0.8 V to 5.1 VLow Dropout: 240 mV (max) at 4 A With BIASOutput Voltage Noise: 4.4 µVRMS1% (max) Accuracy Over Line, Load, and Temperature With BIASPower-Supply Ripple Rejection:40 dB at 500 kHzAdjustable Soft-Start Inrush ControlOpen-Drain, Power-Good (PG) Output3.5-mm × 3.5-mm, 20-Pin VQFN PackageQualified for Automotive ApplicationsAEC-Q100 Qualified for Automotive ApplicationsTemperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C4AExtended Junction Temperature (TJ) Range: –40°C to +150°CInput Voltage Range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VAdjustable Output Voltage Range: 0.8 V to 5.1 VLow Dropout: 240 mV (max) at 4 A With BIASOutput Voltage Noise: 4.4 µVRMS1% (max) Accuracy Over Line, Load, and Temperature With BIASPower-Supply Ripple Rejection:40 dB at 500 kHzAdjustable Soft-Start Inrush ControlOpen-Drain, Power-Good (PG) Output3.5-mm × 3.5-mm, 20-Pin VQFN Package

Description

The TPS7A54-Q1 device is a low-noise (4.4 µVRMS), low-dropout linear regulator (LDO) capable of sourcing 4 A with only 240 mV of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.1 V using an external resistor divider. The combination of low-noise (4.4 µVRMS), high-PSRR, and high output current capability makes the TPS7A54-Q1 ideal to power noise-sensitive components such as those found in radar power and infotainment applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device ideal for powering RF amplifiers, radar sensors, and chipsets. Specifically, RF amplifiers benefit from the high-performance and 5.0-V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (1% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A54-Q1 provides optimal system performance. The versatility of the TPS7A54-Q1 makes the device a component of choice for many demanding applications. The TPS7A54-Q1 device is a low-noise (4.4 µVRMS), low-dropout linear regulator (LDO) capable of sourcing 4 A with only 240 mV of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.1 V using an external resistor divider. The combination of low-noise (4.4 µVRMS), high-PSRR, and high output current capability makes the TPS7A54-Q1 ideal to power noise-sensitive components such as those found in radar power and infotainment applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device ideal for powering RF amplifiers, radar sensors, and chipsets. Specifically, RF amplifiers benefit from the high-performance and 5.0-V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (1% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A54-Q1 provides optimal system performance. The versatility of the TPS7A54-Q1 makes the device a component of choice for many demanding applications.
