STR-A6069 Series
Manufacturer: Sanken Electric USA Inc.
Beta
⌘K

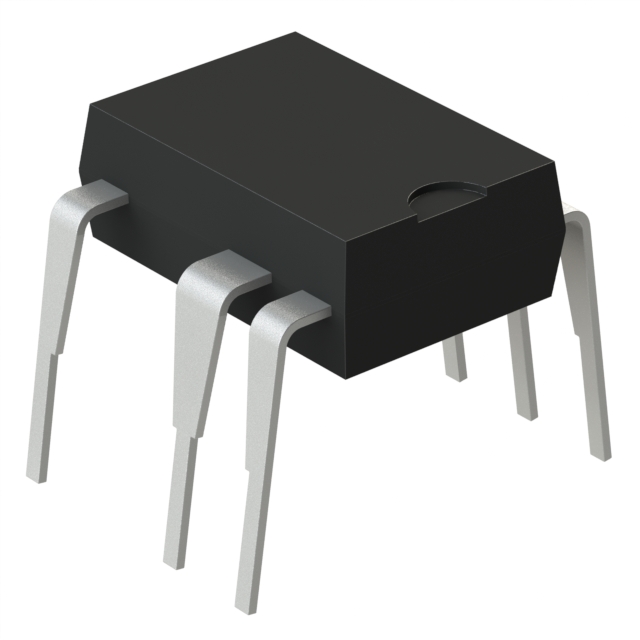

IC OFFLINE SWITCH FLYBACK 8DIP
| Part | Fault Protection | Mounting Type | Voltage - Start Up | Package / Case | Package / Case | Package / Case | Internal Switch(s) | Power (Watts) | Voltage - Breakdown | Operating Temperature [Max] | Operating Temperature [Min] | Topology | Frequency - Switching | Duty Cycle | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Output Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanken Electric USA Inc. | Current Limiting Over Load Over Temperature Over Voltage | Through Hole | 15.3 V | 7 Leads 8-DIP | 7.62 mm | 0.3 in | 30 Watts | 700 V | 125 °C | -20 °C | Flyback | 100 kHz | 83 % | 8-DIP | 32 V | 8.1 V | Isolated | |
 Sanken Electric USA Inc. | Current Limiting Over Load Over Temperature Over Voltage | Through Hole | 15.3 V | 7 Leads 8-DIP | 7.62 mm | 0.3 in | 30 Watts | 700 V | 125 °C | -20 °C | Flyback | 100 kHz | 83 % | 8-DIP | 32 V | 8.1 V | Isolated |
