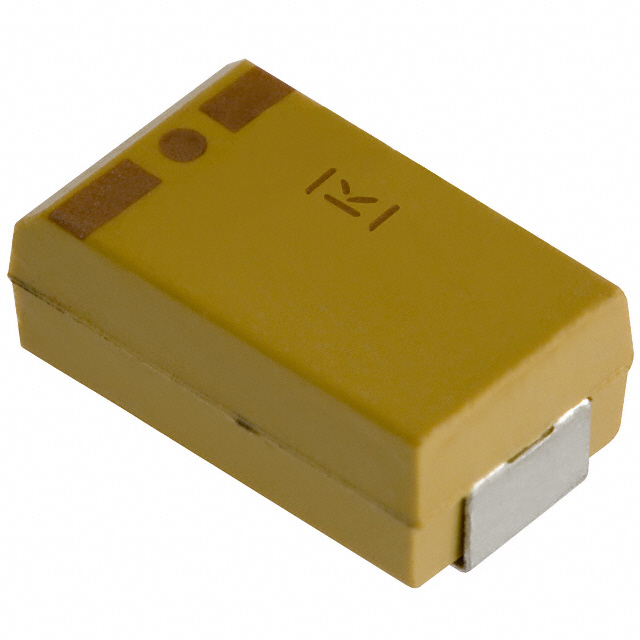

T494D Series

Manufacturer: KEMET

Catalog

CAPACITOR,4.7UF,35VDC,20-% TOL,20+% TOL

Part	Package / Case	Manufacturer Size Code	Lifetime @ Temp.	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	ESR (Equivalent Series Resistance)	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Type	Capacitance	Mounting Type
KEMET T494D475M035AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	700 mOhm	35 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Molded	4.7 µF	Surface Mount
KEMET T494D157M010AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	150 mOhms	10 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Molded	150 µF	Surface Mount
KEMET T494D106K025AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	400 mOhms	25 VDC	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	10 %	Molded	10 µF	Surface Mount
KEMET T494D226K016AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	250 mOhm	16 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	10 %	Molded	22 µF	Surface Mount
KEMET T494D106M035AH	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	400 mOhms	35 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Molded	10 µF	Surface Mount
KEMET T494D107M016AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	150 mOhms	16 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Molded	100 µF	Surface Mount
KEMET T494D106M035AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	400 mOhms	35 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Molded	10 µF	Surface Mount
KEMET T494D477M006AH	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	150 mOhms	6.3 VDC	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Molded	470 µF	Surface Mount
KEMET T494D107K010AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	150 mOhms	10 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	10 %	Molded	100 µF	Surface Mount
KEMET T494D687M004AT	2917 (7343 Metric)	D	2000 Hrs	General Purpose	0.122 in	3.1 mm	150 mOhms	4 V	-55 C	125 °C	0.169 "	7.3 mm	0.287 "	4.3 mm	20 %	Molded	680 µF	Surface Mount
