BA56-11 Series

Catalog

DISPLAY 7SEG 0.56" TRP RED 28DIP

Part	Number of Characters	Wavelength - Peak	Package / Case	Package / Case	Package / Case	Color	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power Dissipation (Max) [Max]	Millicandela Rating	Display Type	Current - Test

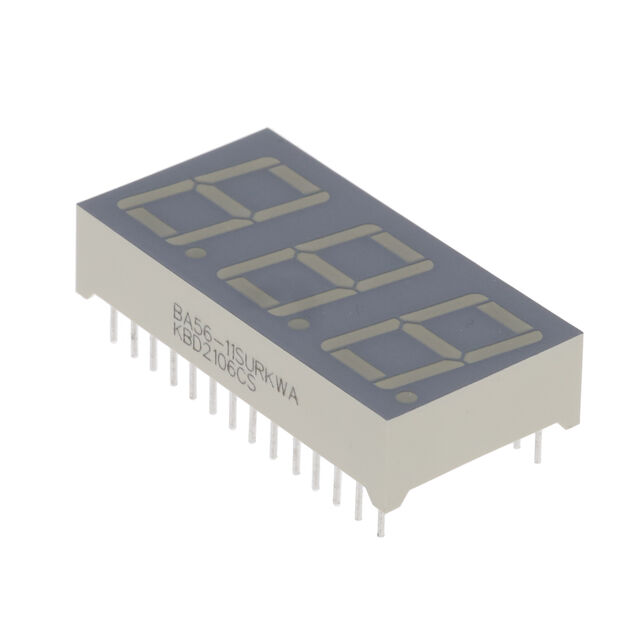

Kingbright BA56-11SURKWA	3	645 nm	28-DIP	15.24 mm	0.6 in	Red	1.95 V	0.56 in	14.22 mm	Common Anode	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in	75 mw	73 mcd	7-Segment	20 mA

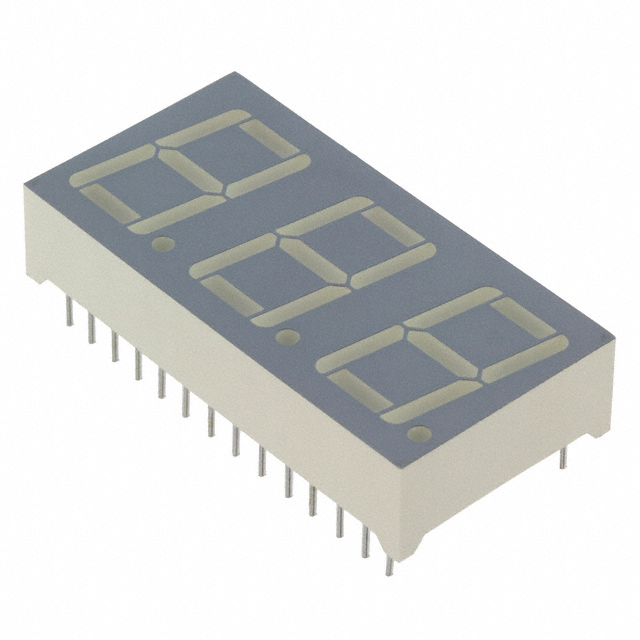

Kingbright BA56-11GWA	3	565 nm	28-DIP	15.24 mm	0.6 in	Green	2.2 V	0.56 in	14.22 mm	Common Anode	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in	62.5 mW	8.6 mcd	7-Segment	20 mA
Kingbright BA56-11YWA	3	590 nm	28-DIP	15.24 mm	0.6 in	Yellow	2.1 V	0.56 in	14.22 mm	Common Anode	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in	75 mw	6.5 mcd	7-Segment	20 mA
Kingbright BA56-11SRWA	3	660 nm	28-DIP	15.24 mm	0.6 in	Red	1.85 V	0.56 in	14.22 mm	Common Anode	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in	75 mw	34 mcd	7-Segment	20 mA
Kingbright BA56-11EWA	3	627 nm	28-DIP	15.24 mm	0.6 in	Red	2 V	0.56 in	14.22 mm	Common Anode	8.1 mm	0.319 "	19 mm	1.48 in	37.6 mm	0.748 in	75 mw	5.8 mcd	7-Segment	20 mA
