SLW5 Series

Catalog

CONN CIC BOTTOM 5POS 1MM R/A

Part	Actuator Color	Housing Color	Mating Cycles	Housing Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness	Contact Material	Mounting Type	Height Above Board [z]	Height Above Board [z]	Flat Flex Type	Connector/Contact Type	Cable End Type	Locking Feature	Pitch	Pitch	Actuator Material	Termination	Number of Positions	Material Flammability Rating	Contact Finish

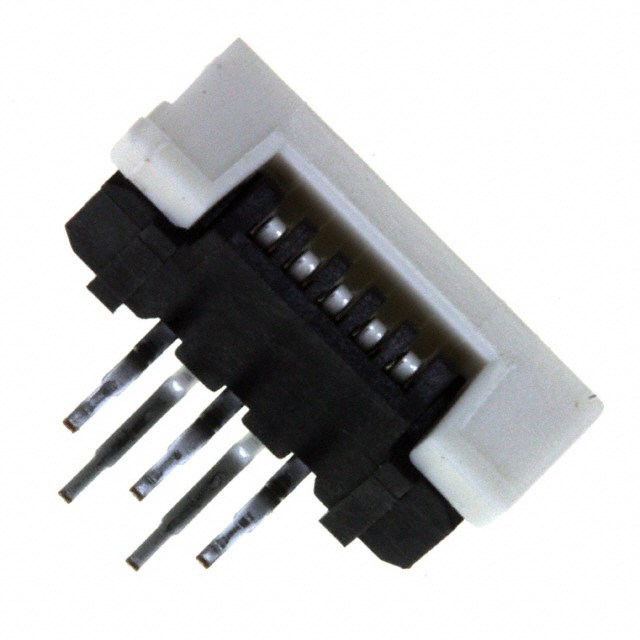

Amphenol ICC (FCI) SLW5R-5C7LF	White	Black	20	Glass Filled Nylon Polyamide (PA)	100 V	-55 C	85 °C	0.3 mm	Phosphor Bronze	Right Angle Through Hole	0.157 in	4 mm	CIC	Contacts Bottom	Tapered	Slide Lock	1 mm	0.039 in	Glass Filled Nylon Polyamide (PA)	Kinked Pin	5	UL94 V-0	Tin
