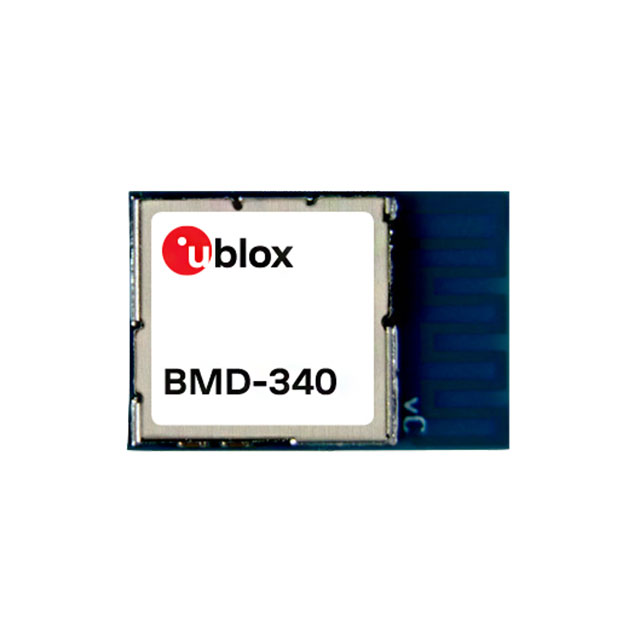

BMD-340 Series
Manufacturer: u-blox
Beta
⌘K
RF TXRX MODULE BT TRACE ANT SMD
| Part | Antenna Type | Modulation | Package / Case | Mounting Type | Utilized IC / Part | Data Rate | Current - Transmitting [Max] [x] | Current - Transmitting [Min] [x] | Serial Interfaces | Frequency [Max] | Frequency [Min] | RF Family/Standard | Sensitivity | Protocol | Voltage - Supply [Min] | Voltage - Supply [Max] | Memory Size | Operating Temperature [Max] | Operating Temperature [Min] | Power - Output | Current - Receiving [Min] | Current - Receiving [Max] | For Use With/Related Products | Supplied Contents | Contents | Type | Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | Integrated Trace | GFSK | Module | Surface Mount | nRF52840 | 2 MBd | 26.7 mA | 5.3 mA | I2C I2S SPI UART | 2.5 GHz | 2.36 GHz | 802.15.4 Bluetooth | -103 dBm | Bluetooth v5.0 Thread Zigbee® | 1.7 V | 3.6 V | 1 MB 256 kB | 85 °C | -40 C | 8 dBm | 5.4 mA | 11.7 mA | |||||

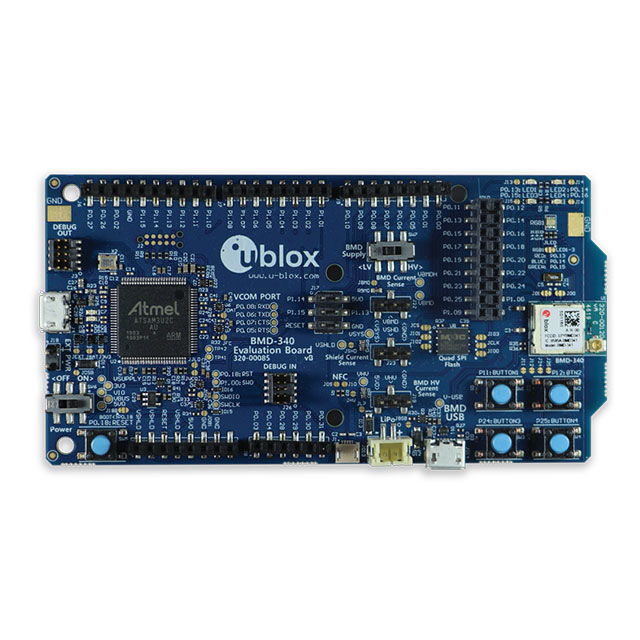

 u-blox | BMD-340 nRF52840 | BMD-340 nRF52840 | Board(s) Cable(s) | Board Cable | 802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver | 2.4 GHz |
