323682 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

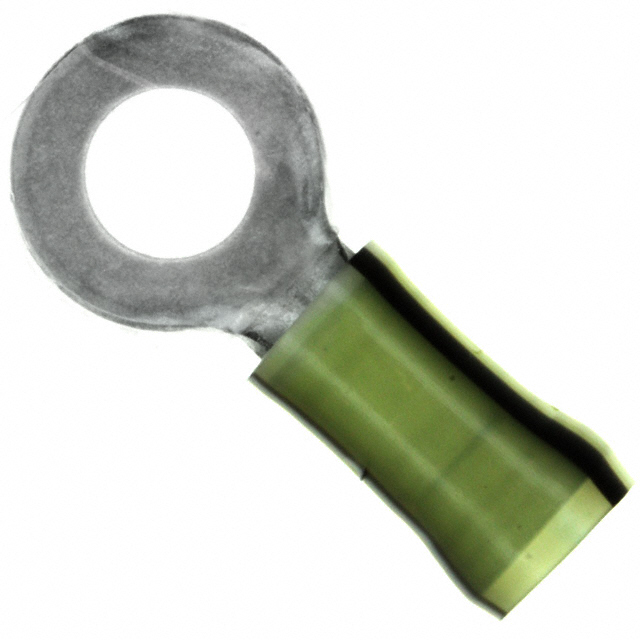

TERMINAL,PIDG R 16-14HD 1/4 ROHS COMPLIANT: YES
| Part | Color | Material - Insulation | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Finish | Thickness | Thickness | Terminal Type | Features | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation | Mounting Type | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Yellow Black Stripe | Nylon Polyamide (PA) | 0.25 Stud | 12.7 mm | 0.5 in | Tin | 0.048 in | 1.22 mm | Circular | Heavy Duty Serrated Termination | 1.188 in | 30.18 mm | 0.25 " | 3.81 mm | 0.15 " | 6.35 mm | Insulated | Free Hanging (In-Line) | Copper | Crimp |
