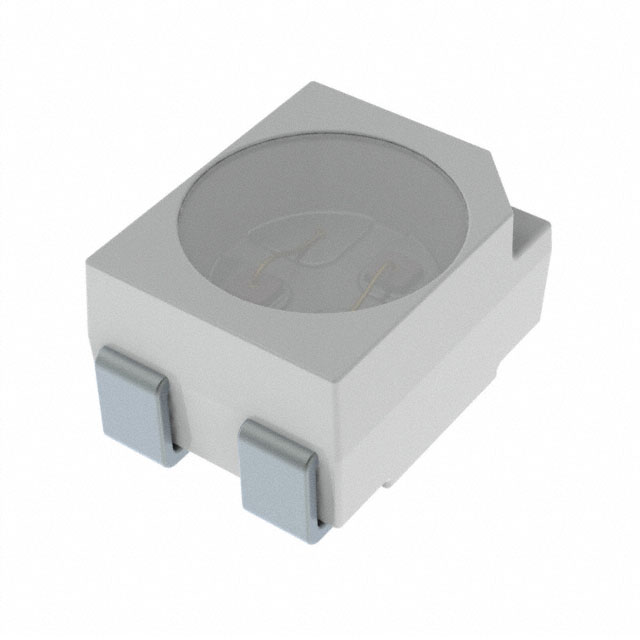

VLMKE3400 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K
LED RED/YLW CLEAR 4PLCC SMD
| Part | Supplier Device Package | Wavelength - Dominant | Height (Max) [z] | Current - Test | Millicandela Rating | Viewing Angle | Mounting Type | Lens Size [diameter] | Color | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Wavelength - Peak | Configuration | Size / Dimension [x] | Size / Dimension [y] | Lens Transparency | Lens Style | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | 4-PLCC | 588 nm 630 nm | 1.85 mm | 20 mA 20 mA | 118 mcd 185 mcd | 120 ° | Surface Mount | 2.4 mm Dia | Red Yellow | 2 V | 1.9 V | 590nm Yellow 643nm Red | Independent | 3 mm | 2.8 mm | Clear | Round with Flat Top | 4-SMD J-Lead |
