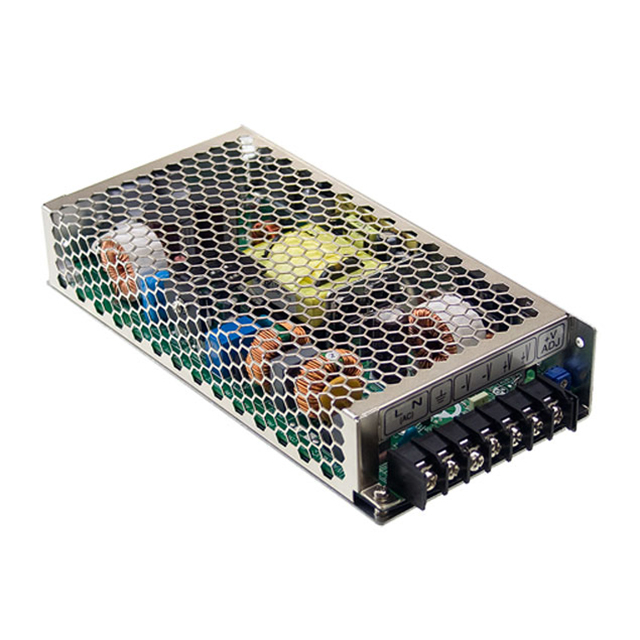

HRP-200 Series

Catalog

AC/DC CONVERTER 5V 175W

Part	Features	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Number of Outputs	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Current - Output 1	Voltage - Isolation	Voltage - Output 1	Mounting Type	Power (Watts)	Applications
MEAN WELL USA Inc. HRP-200-5	Adjustable Output PFC Remote Sense Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	1	84 %	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	Enclosed	35 A	3000 V	5 V	Chassis Mount	175 W	ITE (Commercial)
MEAN WELL USA Inc. HRP-200-7.5	Adjustable Output PFC Remote Sense Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	1	86 %	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	Enclosed	26.7 A	3000 V	7.5 V	Chassis Mount	200 Watts	ITE (Commercial)
MEAN WELL USA Inc. HRP-200-15	Adjustable Output PFC Remote Sense Universal Input	85 VAC 120 VDC	264 VAC 370 VDC	CB CE cURus TUV	1	88 %	199 mm	1.5 in	98 mm	7.83 in	3.86 "	38 mm	Enclosed	13.4 A	3000 V	15 V	Chassis Mount	201 W	ITE (Commercial)
