9011A Series
Manufacturer: ALPHA WIRE
Beta
⌘K

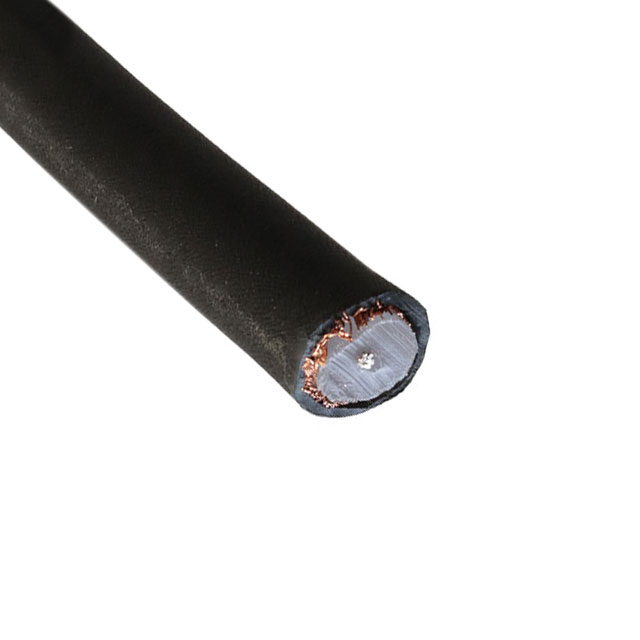

CABLE COAXIAL RG-11A 18AWG 100'
| Part | Dielectric Material | Conductor Material | VoP, Velocity of Propagation | Shield Coverage | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Wire Gauge | Conductor Strand | Impedance | Jacket (Insulation) Material | Cable Type | Length | Length | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Solid Polyethylene (PE) | Copper Tinned | 66 | 95 % | 0.285 in | 7.24 mm | Copper Bare | 80 °C | -30 ░C | Braid | 18 AWG | 7 Strands 26 AWG | 75 Ohms | Poly-Vinyl Chloride (PVC) | Coaxial | 100 ' | 30.48 m | RG-11A | 10.29 mm | 0.405 " | Black |
