R7FS5D37 Series

120MHz Arm Cortex-M4 CPU

Manufacturer: Renesas Electronics Corporation

Catalog

120MHz Arm Cortex-M4 CPU

Part	Core Processor	Package / Case	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Program Memory Type	Peripherals	Program Memory Size	RAM Size	Connectivity	Supplier Device Package	Core Size	Number of I/O	Speed	EEPROM Size	Data Converters	Mounting Type	Data Converters
Renesas Electronics Corporation R7FS5D37A3A01CNB#BA0	ARM® Cortex®-M4F	64-WFQFN Exposed Pad	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	Cap Sense DMA LVD POR PWM RTC WDT	512 KB	256 K	CANbus I2C IrDA SCI SDH SPI SSI UART USB	64-HWQFN (8x8)	32-Bit	40	120 MHz	8 K	A/D 10x12b SAR D/A 2x12b	Surface Mount
Renesas Electronics Corporation R7FS5D97E3A01CLK#AC0	ARM® Cortex®-M4	145-TFLGA	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	DMA LCD LVD POR PWM WDT	2 MB	640 K	CANbus Ethernet I2C QSPI SCI SPI SSIE UART/USART USB	145-TFLGA (7x7)	32-Bit	110	120 MHz	64 K	A/D 22x12b SAR D/A 2x12b	Surface Mount
Renesas Electronics Corporation R7FS5D97E3A01CFC#AA1	ARM® Cortex®-M4F	176-LQFP	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	Crypto - AES DMA LCD LVD POR PWM RSA SHA TRNG WDT	2 MB	640 K	CANbus EBI/EMI Ethernet HMI I2C IrDA MMC/SD QSPI SCI SPI SSI UART/USART USB	176-LFQFP (24x24)	32-Bit	133	120 MHz	64 K	12b 12b	Surface Mount	2 24
Renesas Electronics Corporation R7FS5D37A3A01CNB#AC0	ARM® Cortex®-M4F	64-WFQFN Exposed Pad	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	Cap Sense DMA LVD POR PWM RTC WDT	512 KB	256 K	CANbus I2C IrDA SCI SDH SPI SSI UART USB	64-HWQFN (8x8)	32-Bit Single-Core	40	120 MHz	8 K	A/D 10x12b SAR D/A 2x12b	Surface Mount

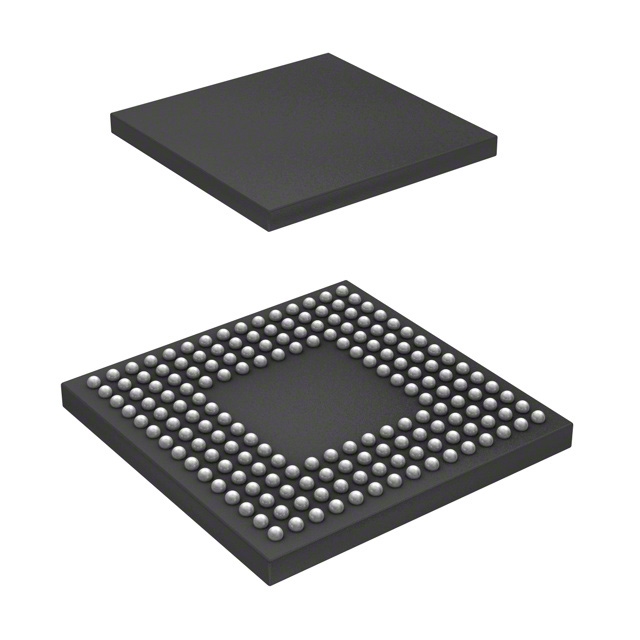

Renesas Electronics Corporation R7FS5D97E2A01CBG#AC0	ARM® Cortex®-M4	176-LFBGA	3.6 V	2.7 V	Internal	85 °C	-40 °C	FLASH	DMA LVD POR PWM WDT	2 MB	640 K	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD QSPI SCI SPI SSI UART/USART USB	176-LFBGA (13x13)	32-Bit Single-Core	133	120 MHz	64 K	A/D 24x12b D/A 2x12b	Surface Mount
Renesas Electronics Corporation R7FS5D97C3A01CFC#BA1	ARM® Cortex®-M4F	176-LQFP	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	Crypto - AES DMA LCD LVD POR PWM RSA SHA TRNG WDT	1 MB	640 K	CANbus EBI/EMI Ethernet HMI I2C IrDA MMC/SD QSPI SCI SPI SSI UART/USART USB	176-LFQFP (24x24)	32-Bit	133	120 MHz	64 K	12b 12b	Surface Mount	2 24
Renesas Electronics Corporation R7FS5D97E3A01CFB#AA0	ARM® Cortex®-M4	144-LQFP	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	DMA LVD POR PWM WDT	2 MB	640 K	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD QSPI SCI SPI SSI UART/USART USB	144-LFQFP (20x20)	32-Bit Single-Core	110	120 MHz	64 K	A/D 22x12b D/A 2x12b	Surface Mount
Renesas Electronics Corporation R7FS5D97C3A01CBG#AC0	ARM® Cortex®-M4	176-LFBGA	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	DMA LCD LVD POR PWM WDT	1 MB	640 K	CANbus Ethernet I2C QSPI SCI SPI SSIE UART/USART USB	176-LFBGA (13x13)	32-Bit	133	120 MHz	64 K	12b 12b	Surface Mount	2 24
Renesas Electronics Corporation R7FS5D97E3A01CFC#AA0	ARM® Cortex®-M4	176-LQFP	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	DMA LVD POR PWM WDT	2 MB	640 K	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD QSPI SCI SPI SSI UART/USART USB	176-LFQFP (24x24)	32-Bit Single-Core	133	120 MHz	64 K	A/D 24x12b D/A 2x12b	Surface Mount
Renesas Electronics Corporation R7FS5D37A3A01CNB#AA0	ARM® Cortex®-M4F	64-WFQFN Exposed Pad	3.6 V	2.7 V	Internal	105 °C	-40 °C	FLASH	Cap Sense DMA LVD POR PWM RTC WDT	512 KB	256 K	CANbus I2C IrDA SCI SDH SPI SSI UART USB	64-HWQFN (8x8)	32-Bit Single-Core	40	120 MHz	8 K	A/D 10x12b SAR D/A 2x12b	Surface Mount

Catalog

120MHz Arm Cortex-M4 CPU

Description

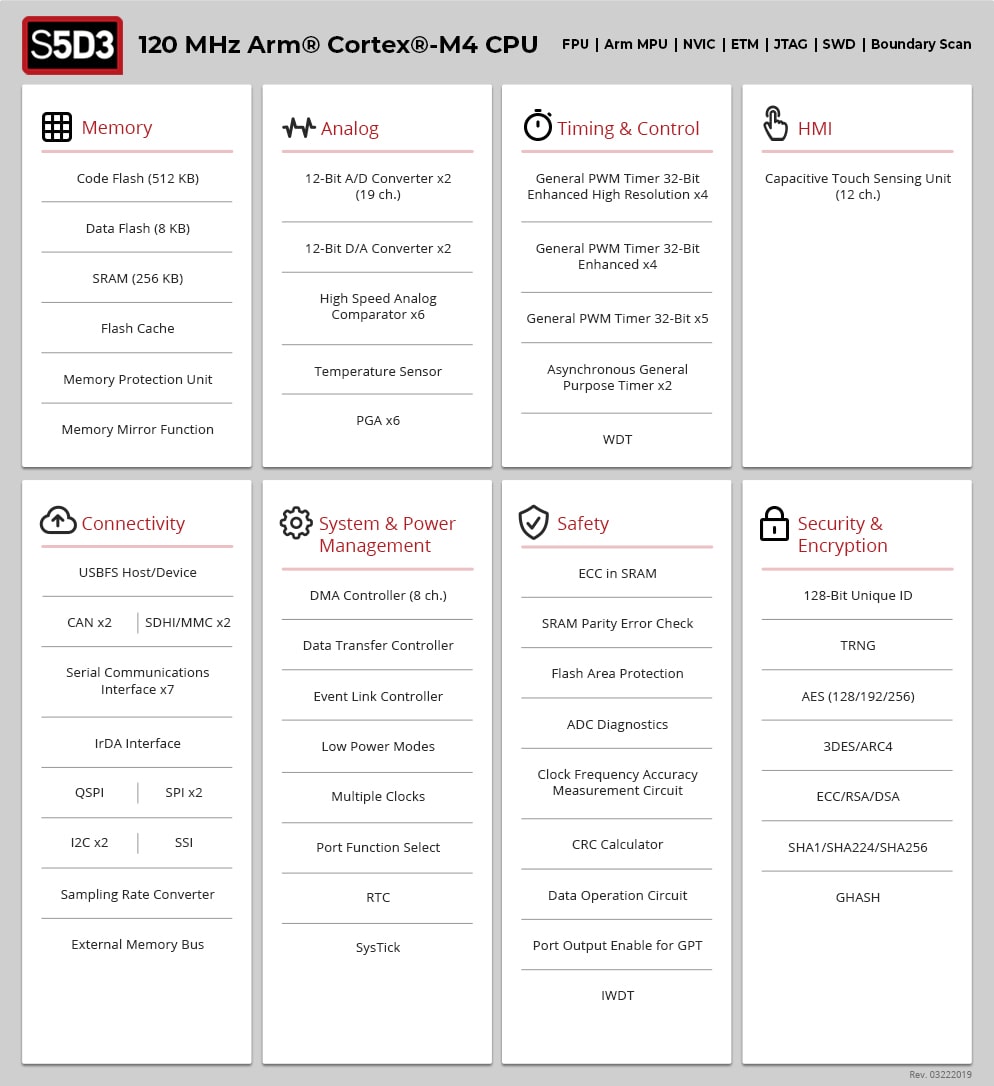

The S5D3 adds a new tier to the S5 MCU series for applications that require a high-performance Cortex®-M4F core at a very attractive price point, that does not require on-chip graphic acceleration or Ethernet connectivity. The S5D3 is built on a highly efficient 40nm process, offers enhanced security, wide connectivity, and is fully supported by the Synergy Software Package (SSP). Commercial software worth over $100K which is available to developers using the Synergy Platform for no charge and with unlimited production license rights. The production-ready SSP is fully tested, maintained, and supported by Renesas.
