ML250 Series
Manufacturer: Panduit Corp
Beta
⌘K

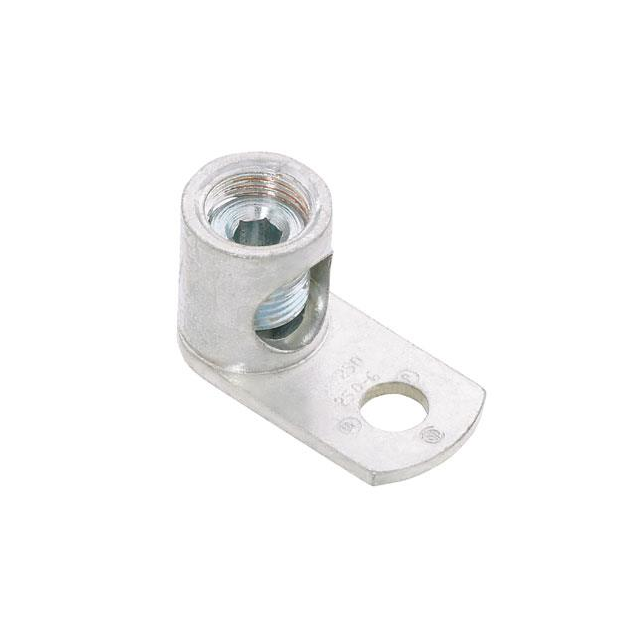

CONN TERM RECT LUG 6 AWG #3/8
| Part | Terminal Type | Tab Thickness | Tab Thickness | Width - Outer Edges [y] | Width - Outer Edges [y] | Wire Gauge | Wire Gauge | Length - Overall [x] | Length - Overall | Mounting Type | Contact Material | Features | Contact Finish | Insulation | Stud/Tab Size | Termination | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Grounding Lug | 3.05 mm | 0.12 in | 23.88 mm | 0.94 in | 250 MCM | 6 AWG | 1.94 " | 49.28 mm | Free Hanging (In-Line) | Electrolytic Copper | With Screw | Tin | Non-Insulated | 3/8 Stud | Screw | Single Stud Hole |
