395-108 Series
Manufacturer: EDAC Inc.
Beta
⌘K

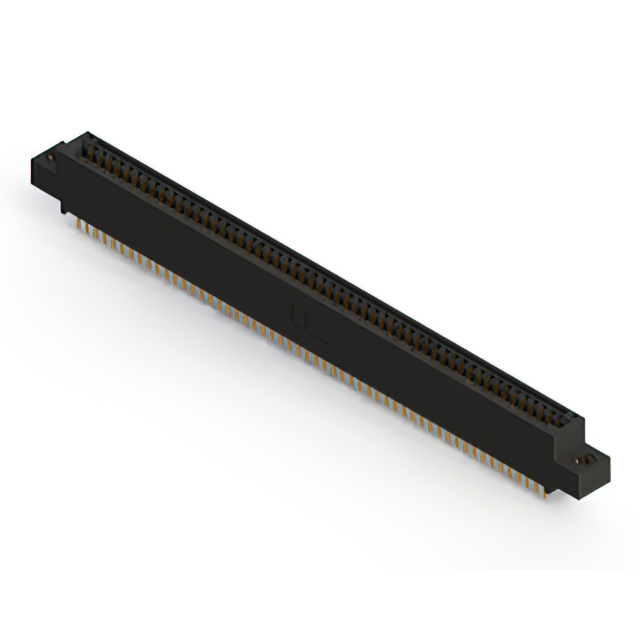

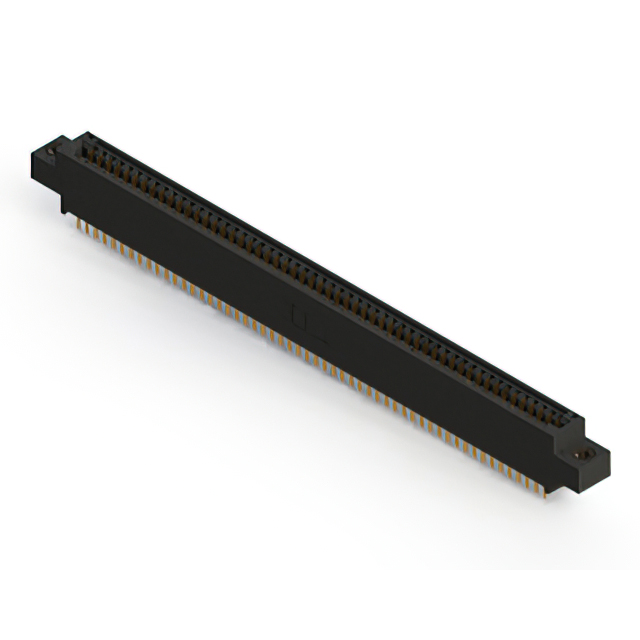

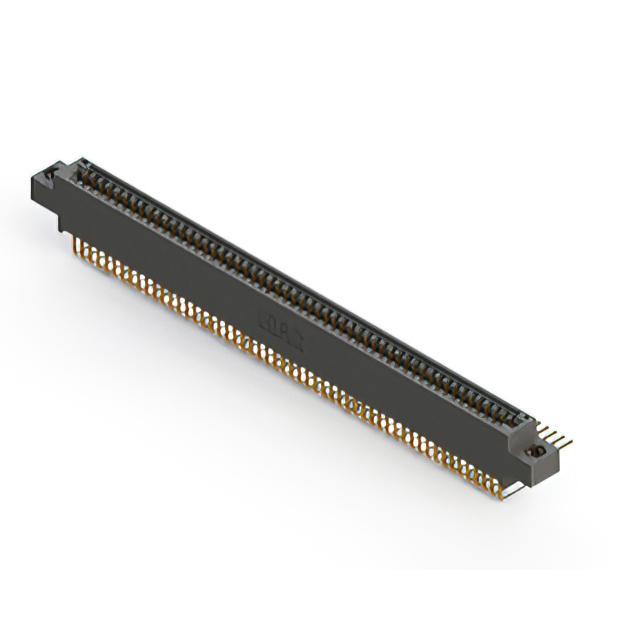

CONN EDGE DUAL FML 108POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Contact Type | Termination | Number of Rows [custom] | Gender | Pitch | Pitch | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Card Type | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Color | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Wire Wrap | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | M3 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | M3 Threaded Insert Top Mount Opening | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Wire Wrap | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Board Edge Straddle Mount | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | Floating Bobbin Top Mount Opening | Card Extender | 0.116 " | 2.95 mm |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Right Angle Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | Cantilever | Solder | 2 | Female | 0.1 " | 2.54 mm | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Non Specified - Dual Edge | Copper Alloy | Through Hole | 0.25 Ám | 10 Áin | 54 | Dual | -40 C | 105 ░C | 108 | Black |
