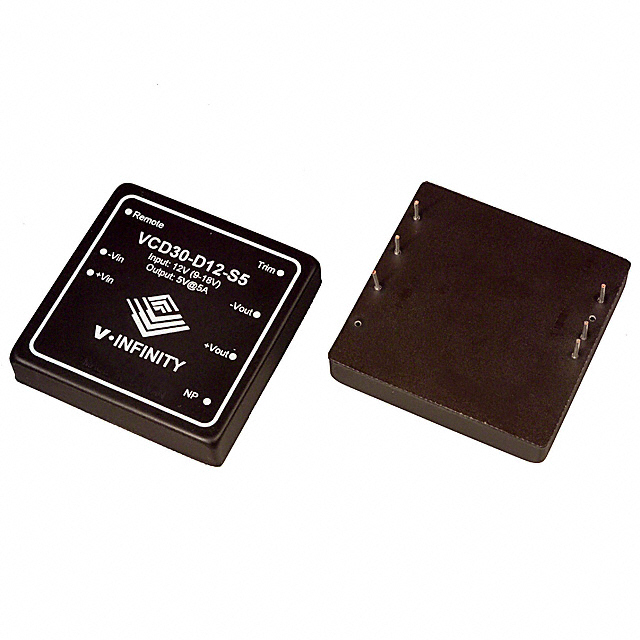

VCD30 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 5V 30W
| Part | Applications | Voltage - Isolation | Efficiency | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Standard Number | Power (Watts) | Number of Outputs | Package / Case | Features | Type | Voltage - Output 1 | Approval Agency | Control Features | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | ITE (Commercial) | 500 V | 78 % | Through Hole | 50.8 mm | 2 in | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 60950-1 | 30 Watts | 1 | 8-DIP Module | Remote On/Off SCP | Isolated Module | 5 V | UL | Active High Enable | 5 A | 71 °C | -25 °C | 18 V | 9 V |
