GWDASPA2 Series

Catalog

LED OSCONIQ COOL WHT 5700K SMD

Part	Thermal Resistance of Package	Viewing Angle	Mounting Type	Current - Test	CRI (Color Rendering Index)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Color	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Current - Max [Max]	CCT (K)	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test
ams-OSRAM USA INC. GW DASPA2.EC-HTJP-5F7G-1-100-R18	14 °C/W	120 °	Surface Mount	100 mA	80	SMD	0.102 "	2.2 mm	2.6 mm	0.087 in	Cool White	1009 (2622 Metric)	1.31 mm	0.052 in	48 lm	44 lm	39 lm	250 mA	5700 K	2.85 V	154 lm/W

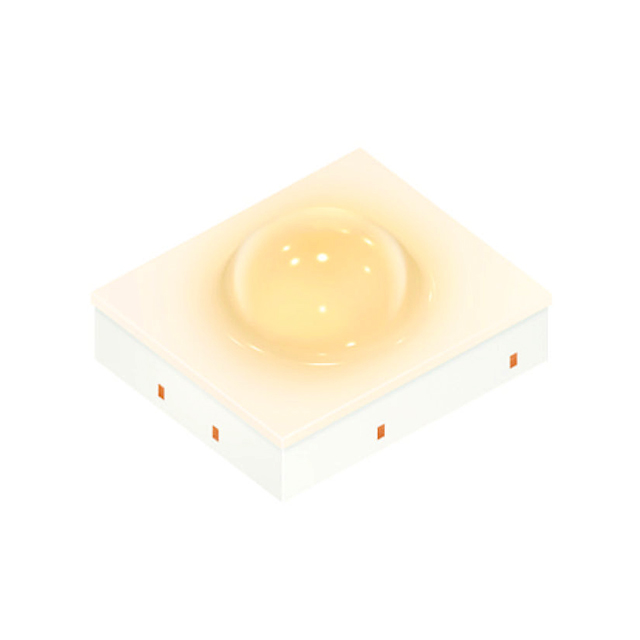

ams-OSRAM USA INC. GW DASPA2.EC-HSHU-5R8T-1-100-R18	14 °C/W	120 °	Surface Mount	100 mA	80	SMD	0.102 "	2.2 mm	2.6 mm	0.087 in	Warm White	1009 (2622 Metric)	1.31 mm	0.052 in		41 lm		250 mA	3000 K	2.85 V	144 lm/W
ams-OSRAM USA INC. GW DASPA2.EC-HTJP-5H7I-1-100-R18	14 °C/W	120 °	Surface Mount	100 mA	80	SMD	0.102 "	2.2 mm	2.6 mm	0.087 in	Cool White	1009 (2622 Metric)	1.31 mm	0.052 in	48 lm	44 lm	39 lm	250 mA	5000 K	2.85 V	154 lm/W
ams-OSRAM USA INC. GW DASPA2.EC-HSHU-5O8Q-1-100-R18	14 °C/W	120 °	Surface Mount	100 mA	80	SMD	0.102 "	2.2 mm	2.6 mm	0.087 in	Warm White	1009 (2622 Metric)	1.31 mm	0.052 in		41 lm		250 mA	3500 K	2.85 V	144 lm/W
ams-OSRAM USA INC. GW DASPA2.EC-HTJP-5L7N-1-100-R18	14 °C/W	120 °	Surface Mount	100 mA	80	SMD	0.102 "	2.2 mm	2.6 mm	0.087 in	Neutral White	1009 (2622 Metric)	1.31 mm	0.052 in	48 lm	44 lm	39 lm	250 mA	4000 K	2.85 V	154 lm/W
ams-OSRAM USA INC. GW DASPA2.EC-HRHT-5U8X-1-100-R18	14 °C/W	120 °	Surface Mount	100 mA	80	SMD	0.102 "	2.2 mm	2.6 mm	0.087 in	Warm White	1009 (2622 Metric)	1.31 mm	0.052 in	36 lm		33 lm	250 mA	2700 K	2.85 V	123 lm/W
ams-OSRAM USA INC. GW DASPA2.EC-HTJP-5J7K-1-100-R18	14 °C/W	120 °	Surface Mount	100 mA	80	SMD	0.102 "	2.2 mm	2.6 mm	0.087 in	Neutral White	1009 (2622 Metric)	1.31 mm	0.052 in	48 lm	44 lm	39 lm	250 mA		2.85 V	154 lm/W
