XC6810 Series

Catalog

BATT CHARGER, LI-ION/POL, -40 TO 85DEG C ROHS COMPLIANT: YES

Part	Programmable Features	Supplier Device Package	Current - Charging	Mounting Type	Package / Case	Battery Pack Voltage	Battery Chemistry [custom]	Fault Protection	Voltage - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Charge Current - Max	Number of Cells

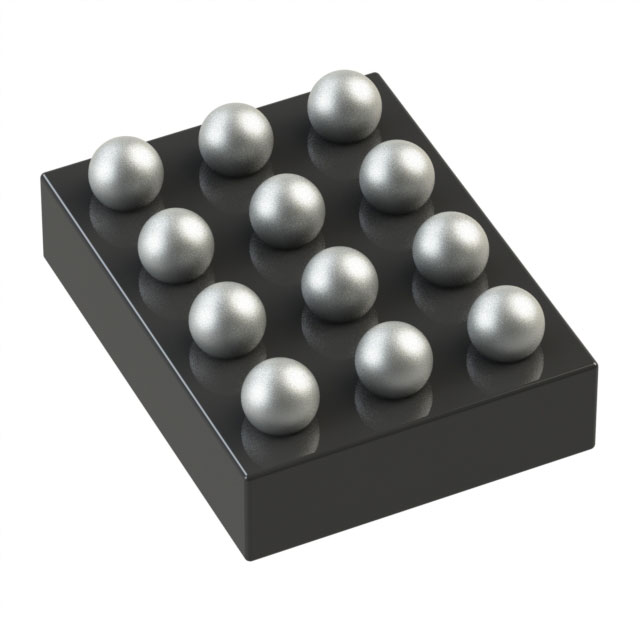

Torex Semiconductor Ltd XC6810B43H0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.3 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810B43G0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.3 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810A43J0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.3 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810A44C0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.4 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810A42C0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.2 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810A41G0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.1 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810A41J0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.1 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810A4DH0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.35 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810A43G0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.3 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
Torex Semiconductor Ltd XC6810B41C0R-G	Current Timer Voltage	12-WLP (1.17x1.57)	Constant - Programmable	Surface Mount	12-XFBGA WLBGA	4.1 V	Lithium Ion/Polymer	Over Temperature Over Voltage Reverse Current Short Circuit	28 V	85 C	-40 ¯C	25 mA	1
