G125-FS1 Series

Catalog

PCB RECEPTACLE, BLACK / GREEN, WIRE-TO-BOARD, 1.25 MM, 2 ROWS, 10 CONTACTS, SURFACE MOUNT

Part	Contact Shape	Applications	Contact Material	Insulation Material	Contact Type	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Current Rating (Amps)	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Fastening Type	Contact Finish - Post	Connector Type	Features	Pitch - Mating	Pitch - Mating	Termination	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Voltage Rating

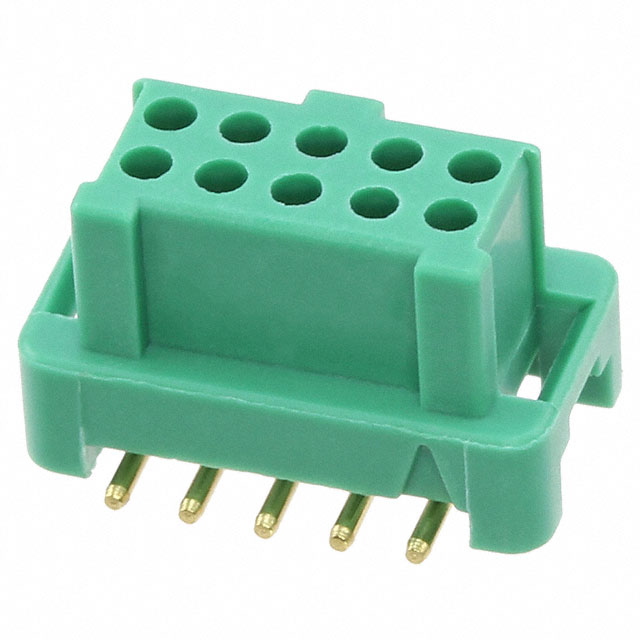

Harwin Inc. G125-FS11005L0P	Circular	Automotive General Purpose	Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	10	150 °C	-65 ░C	Gold	Latch Holder	Gold	Receptacle	Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in

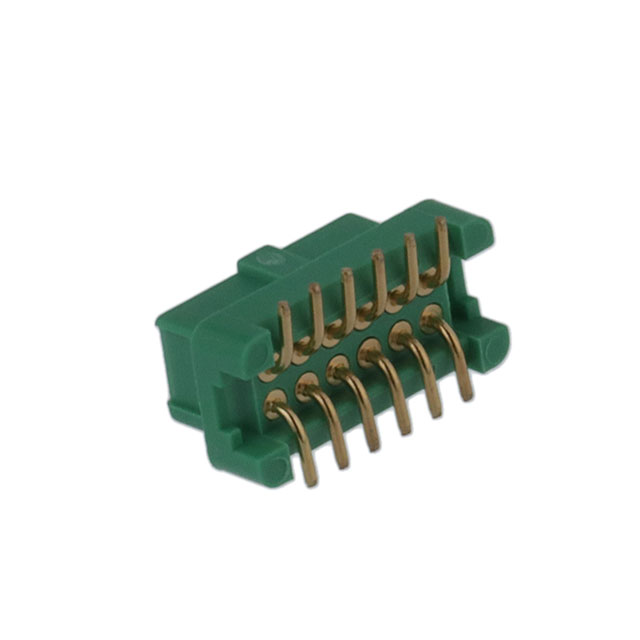

Harwin Inc. G125-FS11205L0R	Circular	Automotive General Purpose	Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	12	150 °C	-65 ░C	Gold	Latch Holder	Gold	Receptacle	Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in

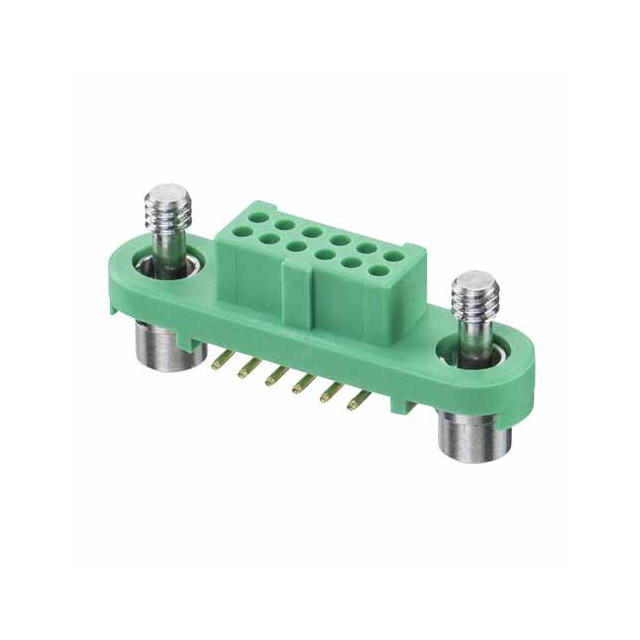

Harwin Inc. G125-FS11205F1R	Circular	General Purpose	Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	12	150 °C	-65 ░C	Gold		Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in	0.203 µm	8 µin	7.33 mm 7.4 mm	450 V

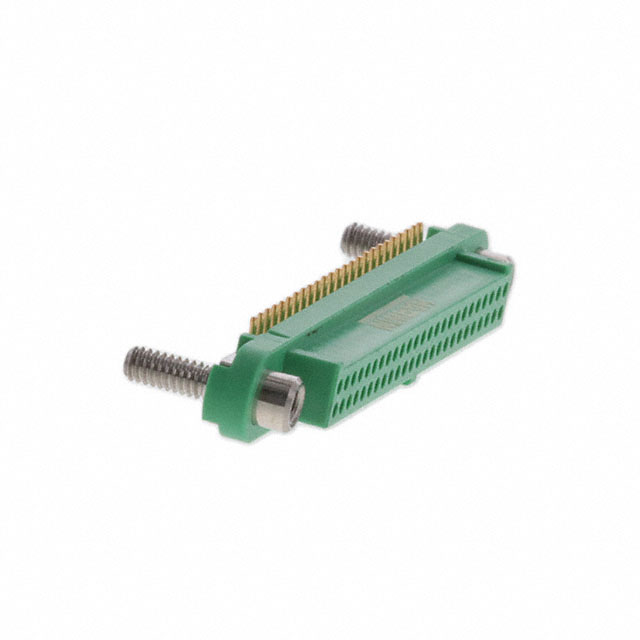

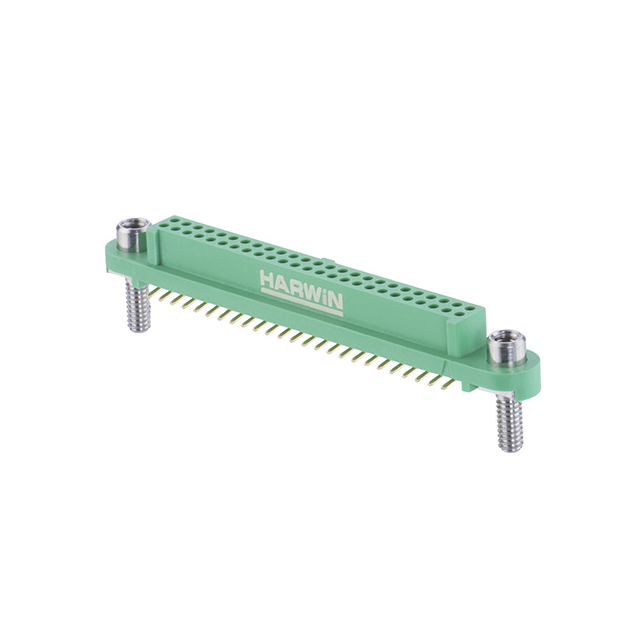

Harwin Inc. G125-FS15005F3R	Circular		Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	50	150 °C	-65 ░C	Gold		Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in	0.203 µm	8 µin	7.33 mm 7.4 mm	450 V

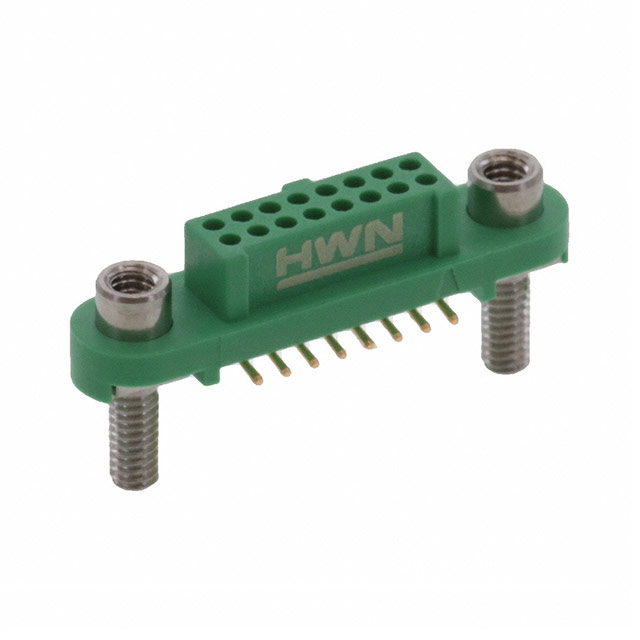

Harwin Inc. G125-FS11605F3P	Circular		Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	16	150 °C	-65 ░C	Gold		Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in	0.203 µm	8 µin	7.33 mm 7.4 mm	450 V

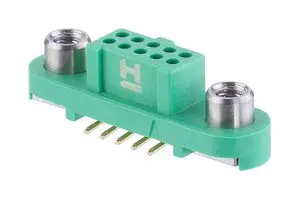

Harwin Inc. G125-FS11005F2P	Circular		Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	10	150 °C	-65 ░C	Gold		Gold	Receptacle	Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in	0.203 µm	8 µin	7.33 mm 7.4 mm	450 V

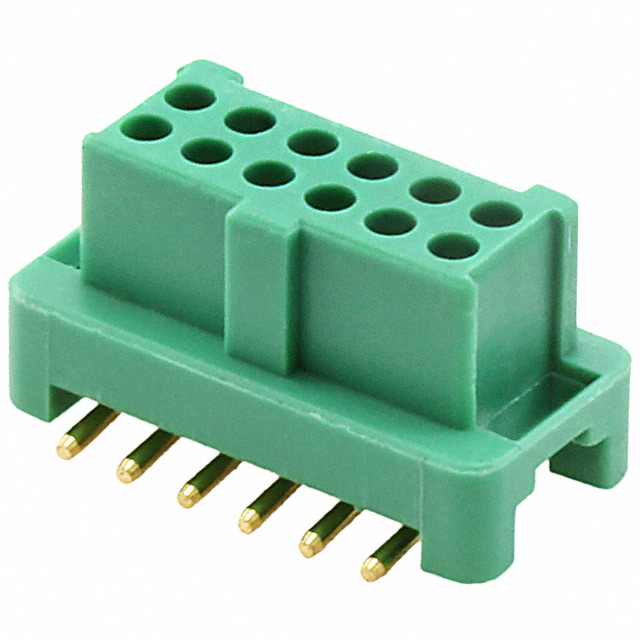

Harwin Inc. G125-FS11205L0P	Circular	Automotive General Purpose	Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	12	150 °C	-65 ░C	Gold	Latch Holder	Gold	Receptacle	Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in

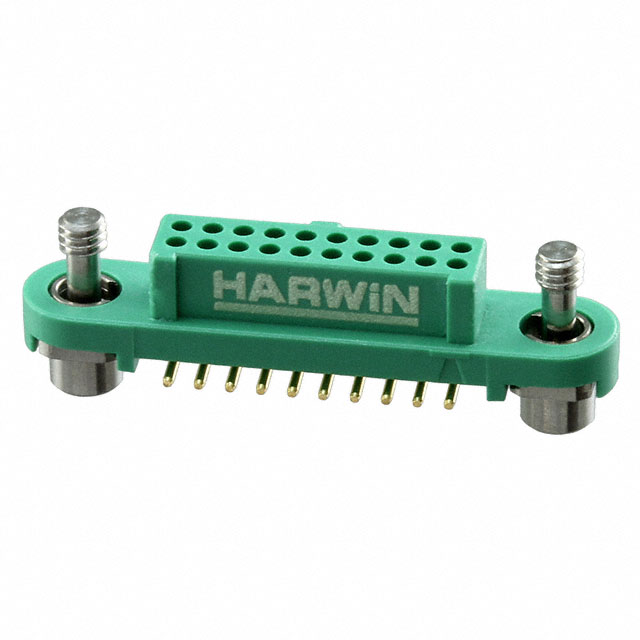

Harwin Inc. G125-FS12005F1P	Circular	Automotive General Purpose	Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	20	105 ░C	-65 ░C	Gold		Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in

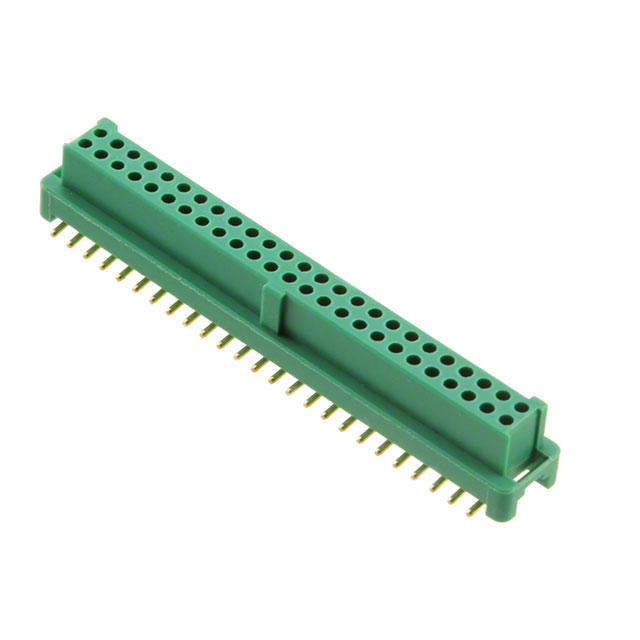

Harwin Inc. G125-FS15005L0P	Circular	Automotive General Purpose	Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	50	150 °C	-65 ░C	Gold	Latch Holder	Gold	Receptacle	Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in
Harwin Inc. G125-FS10605F3P	Circular		Copper Alloy	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Female Socket	Green	8 µin	0.203 µm	Board to Board Cable	2 A	Surface Mount	All	UL94 V-0	5.25 mm	0.207 in	6	150 °C	-65 ░C	Gold		Gold	Receptacle	Jackscrews Pick and Place Polarizing Key	0.049 in	1.25 mm	Solder	2	1.25 mm	0.049 in	0.203 µm	8 µin	7.33 mm 7.4 mm	450 V
