M5333 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

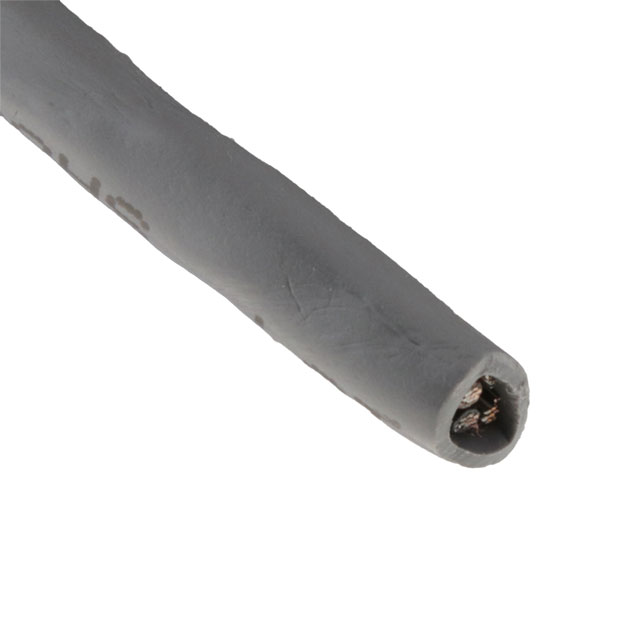

CABLE 2COND 22AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Number of Conductors | Conductor Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket Color | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Features | Voltage | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 2 | Copper Tinned | Multi-Conductor | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | UL Style 2464 | 0.193 in | 4.9 mm | 100 ft | 30.5 m | Slate | 22 AWG | 28 AWG | 7 | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | 300 VDC | Foil |
