1601 Series

Catalog

CONN RING CIRC 4/0AWG #10 CRIMP

Part	Stud/Tab Size	Terminal Type	Length - Overall [x]	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Mounting Type	Contact Material	Termination	Wire Gauge	Contact Finish	Features	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Material - Insulation	Color

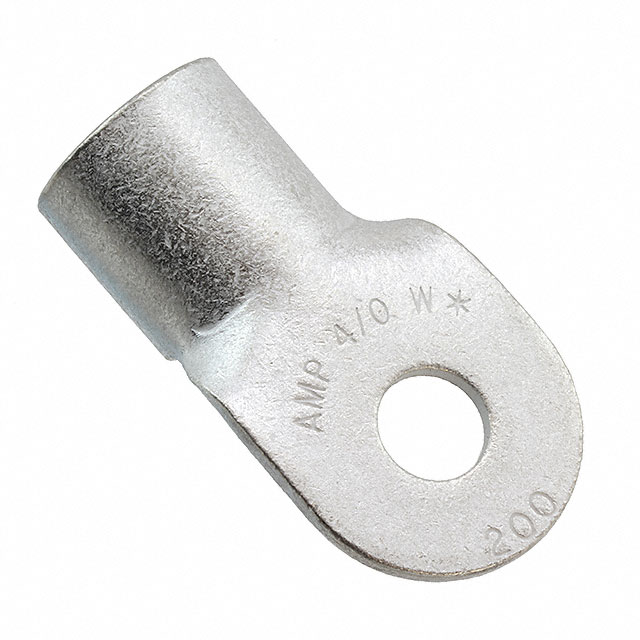

TE Connectivity Raychem Cable Protection 160129	M10 Stud	Circular	2.177 in	55.3 mm	27 mm	1.063 in	Non-Insulated	Free Hanging (In-Line)	Copper	Crimp	4 aught AWG	Tin

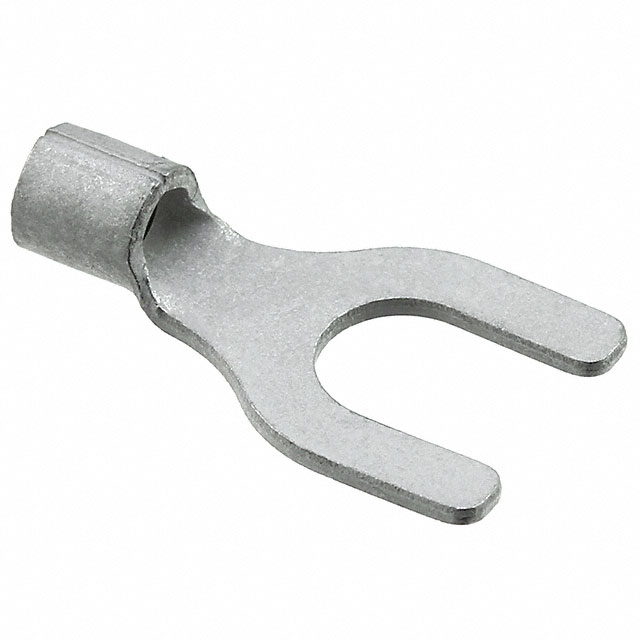

TE Connectivity Raychem Cable Protection 160127	5 Stud	Standard					Non-Insulated	Free Hanging (In-Line)	Copper Alloy	Crimp		Tin	Brazed Seam	5.26 mm	0.207 in
TE Connectivity Raychem Cable Protection 160136	M10 Stud	Circular	1.244 in				Insulated	Free Hanging (In-Line)	Copper	Crimp		Tin	Serrated Termination			31.6 mm	0.657 in	16.7 mm	0.81 mm	0.032 in	4.9 mm	3 mm	0.193 in	0.118 in	Poly-Vinyl Chloride (PVC)	Blue
