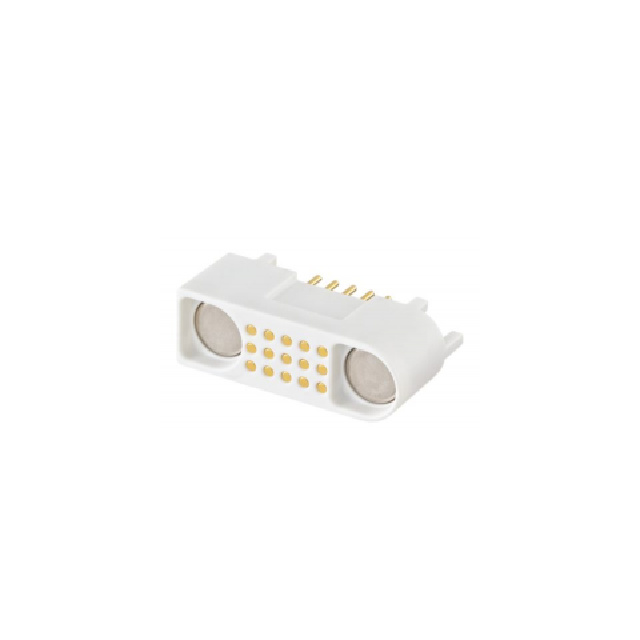

M9K103-40 Series
Manufacturer: Rosenberger
Beta
⌘K
CONN RCPT 15POS 0.1 GOLD PCB
| Part | Contact Shape | Contact Material | Insulation Material | Connector Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions Loaded | Number of Positions | Current Rating (Amps) | Voltage Rating | Material Flammability Rating | Style | Contact Type | Fastening Type | Insulation Height | Insulation Height [z] | Insulation Color | Mounting Type | Termination | Number of Rows [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Circular | Brass | Polybutylene Terephthalate (PBT) | Receptacle | Gold | -25 °C | 65 °C | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | All | 15 | 1.5 A | 12 VDC | UL94 V-0 | Board to Cable/Wire | Female Socket | Latch Holder | 14.5 mm | 0.571 in | White | Through Hole | Solder | 3 | Board Guide |
